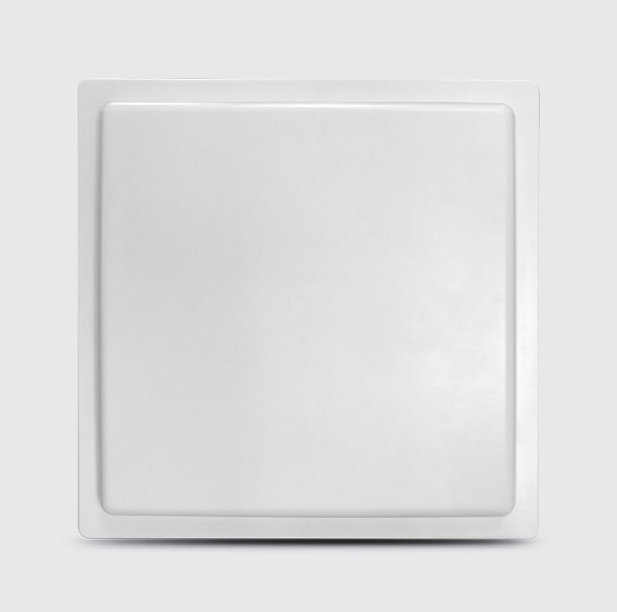

12dBi Antenna
€ 167.90 EUR
excl. VAT
This is the 12dBi Panel Antenna launched by Chainway. Featured with high sensitivity, superior reading performance, long-distance/bulk-tags reading ability, it also can ensure accuracy, speed, and high security. Meanwhile, it possesses an IP67 protection rating and good waterproofness. These parameters make the device fit perfectly for peak performance across a spectrum of industries, including intelligent transportation, warehousing, event management, production-line management, inventive retail strategies, financial management, and medical equipment management, etc.
No items found.
No items found.
Compatible accessories
9/12dBi Antenna Cable LMR200-1M
1 meter for UR4/UR8 with 9/12dBi Antenna.
Loss of signal 0,3DBi/m
€ 27.90 EUR
excl. VAT
9/12dBi Antenna Cable LMR200-5M
5 meter for UR4/UR8 with 9/12dBi Antenna.
Loss of signal 0,3DBi/m
€ 38.90 EUR
excl. VAT
9/12dBi Antenna Cable LMR200-15M
15 meter for UR4/UR8 with 9/12dBi Antenna.
Loss of signal 0,3DBi/m
€ 54.90 EUR
excl. VAT
9/12dBi Antenna Cable LMR240-5M
5 meter for URA4 with 9/12dBi Antenna.
Loss of signal 0,25DBi/m
€ 33.90 EUR
excl. VAT
9/12dBi Antenna Cable LMR240-15M
15 meter for URA4 with 9/12dBi Antenna.
Loss of signal 0,25DBi/m
€ 62.90 EUR
excl. VAT
9/12dBi Antenna Cable LMR400-5M
5 meter for UR4/UR8 with 9/12dBi Antenna.
Loss of signal 0,12DBi/m
€ 46.90 EUR
excl. VAT
9/12dBi Antenna Cable LMR400-10M
10 meter for UR4/UR8 with 9/12dBi Antenna.
Loss of signal 0,12DBi/m
€ 73.90 EUR
excl. VAT
9/12dBi Antenna Cable LMR400-15M
15 meter for UR4/UR8 with 9/12dBi Antenna.
Loss of signal 0,12DBi/m
€ 96.90 EUR
excl. VAT
9/12dBi Antenna Cable U300 5M
5 meter cable for U300 with 9/12dBi Antenna.
€ 27.90 EUR
excl. VAT
9/12dBi Antenna Cable U300 15M
15 meter cable for U300 with 9/12dBi Antenna.
€ 65.90 EUR
excl. VAT
Standard accessories
No compatible accessories for this product.
Integration with your molding line
12dBi Antenna
comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.

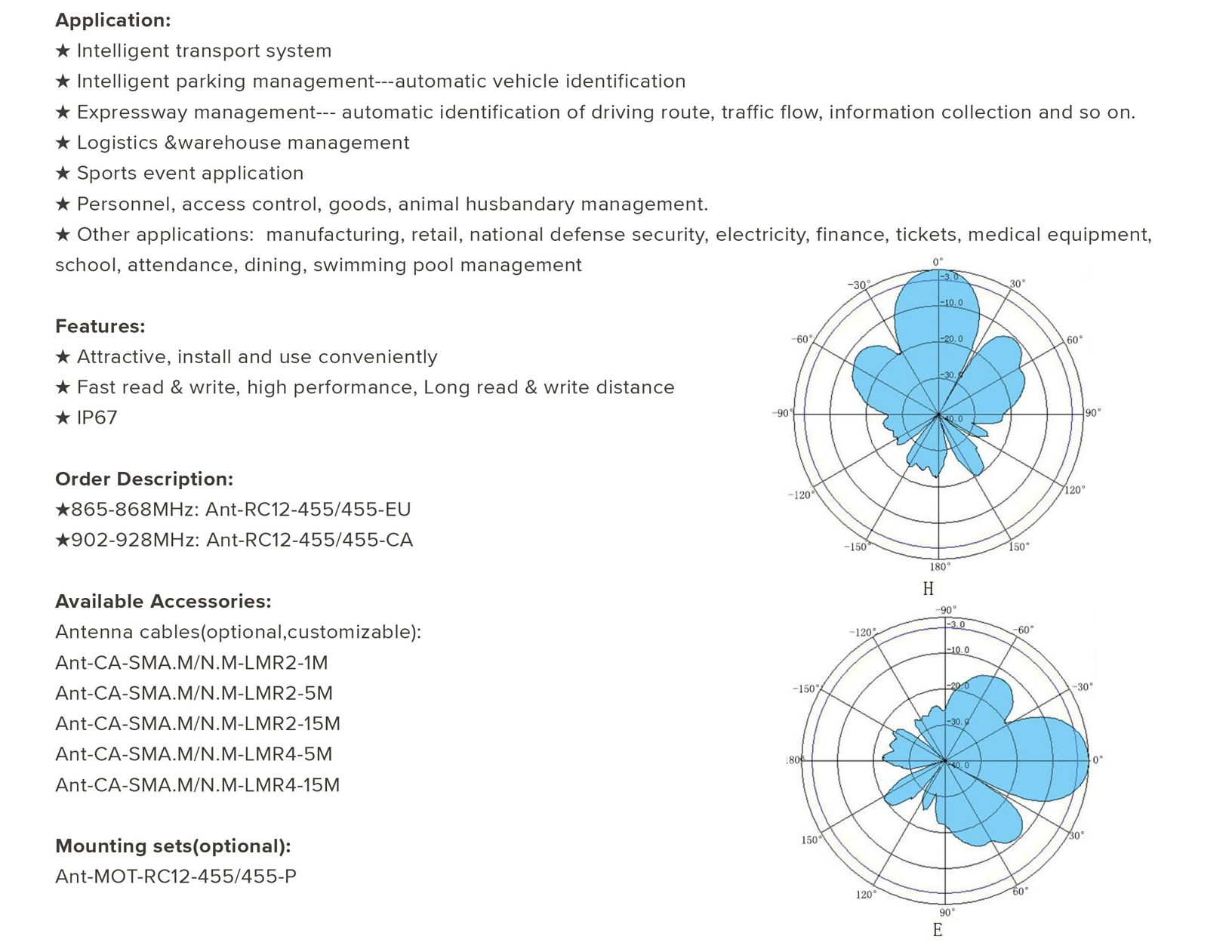

Specifications & docs
Frequency Range 902-928MHz
Polarization Type RHCP
Gain 12 dBi
3dB Beam-Width. H-Plan 40°
3dB Beam-Width. E-Plan 38°
VSWR ≤1.3
Front to back Ratio ≥17dB
Input Impedance 50Ω
Max Input Power 20W
Lightning Protection DC Grounded
