5dBi Antenna
€ 69.90 EUR
excl. VAT

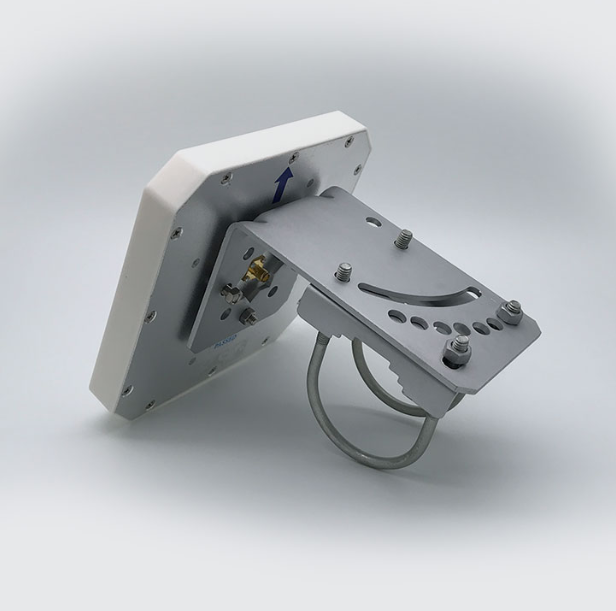

This is the 5dBi Panel Antenna launched by Chainway. Possessing front-to-rear ratio, narrow side-lobe, and 5dBi gain, it can perform stably and read multi-tags under a moderate range accurately and quickly with an assurance of high data security. Visually, this antenna is small in size, light in weight, and with a low profile, making it easy to install. Meanwhile, it got a certification from IP67, which is a high protection rating. To summarize, this antenna could be of advantage in a variety of industries, such as logistics, warehousing, access control and materials management, etc.
No items found.
No items found.
Compatible accessories
5dBi Antenna Cable LMR200-1M
1 meter for UR4/UR8 with 5dBi Antenna.
Loss of signal 0,3DBi/m
€ 27.90 EUR
excl. VAT
5dBi Antenna Cable LMR200-5M
5 meter for UR4/UR8 with 5dBi Antenna.
Loss of signal 0,3DBi/m
€ 38.90 EUR
excl. VAT
5dBi Antenna Cable LMR200-15M
15 meter for UR4/UR8 with 5dBi Antenna.
Loss of signal 0,3DBi/m
€ 54.90 EUR
excl. VAT
5dBi Antenna Cable LMR240-5M
5 meter for URA4 with 5dBi Antenna.
Loss of signal 0,25DBi/m
€ 33.90 EUR
excl. VAT
5dBi Antenna Cable LMR240-15M
15 meter for URA4 with 5dBi Antenna.
Loss of signal 0,25DBi/m
€ 62.90 EUR
excl. VAT
5dBi Antenna Cable LMR400-5M
5 meter for UR4/UR8 with 5dBi Antenna.
Loss of signal 0,12DBi/m
€ 46.90 EUR
excl. VAT
5dBi Antenna Cable LMR400-10M
10 meter for UR4/UR8 with 5dBi Antenna.
Loss of signal 0,12DBi/m
€ 73.90 EUR
excl. VAT
5dBi Antenna Cable LMR400-15M
15 meter for UR4/UR8 with 5dBi Antenna.
Loss of signal 0,12DBi/m
€ 96.90 EUR
excl. VAT
5dBi Antenna Cable U300 5M
5 meter cable for U300 with 5dBi Antenna.
€ 27.90 EUR
excl. VAT
Standard accessories
No compatible accessories for this product.
Integration with your molding line
5dBi Antenna
comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.
Specifications & docs
Connector Type SMA female
Dimensions H*W*D (mm) 145*145*20(mm)
Weight 0.73kg (with mounting bracket)
Radome Material ABS
Radome color white
Radiant board material aluminum
Operating Temperature -40ºC/+60ºC
Sealing IP67
Installation mode Pole mounted or Wall mounted
Support Pole Diameter φ30-φ50(mm)
Rated Wind Velocity 60m/s
Frequency Range 865-868MHz
Polarization Type RHCP
Gain 5dBi
3dB Beam-Width. H-Plan 80°
3dB Beam-Width. E-Plan 70°
VSWR ≤1.3
Front to back Ratio ≥17dB
Input Impedance 50Ω
Max Input Power 20W
Lightning Protection DC Grounded
