C63 Mobile Computer
Compatible accessories
Standard accessories
Integration with your molding line
Specifications & docs
Dimensions

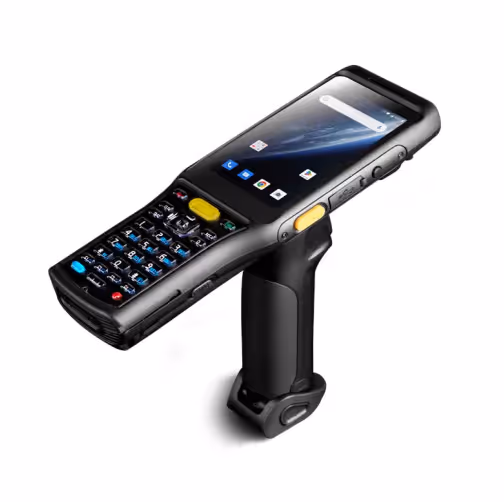

203.50 x 72.8 x 160 mm / 8.01 x 2.87 x 6.30in. (with pistol)
203.50 x 72.8 x 34.8 mm / 8.01 x 2.87 x 1.37in. (without pistol)
Weight
385g / 13.58oz. (device with battery)
571g / 20.14oz. (device with pistol and battery)
Keypad

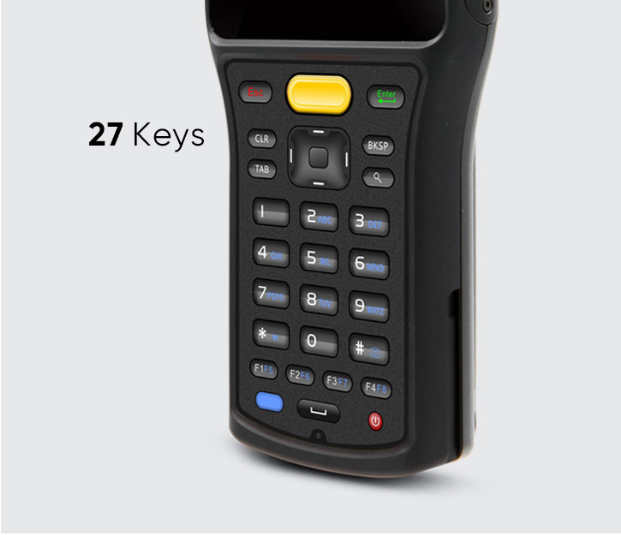

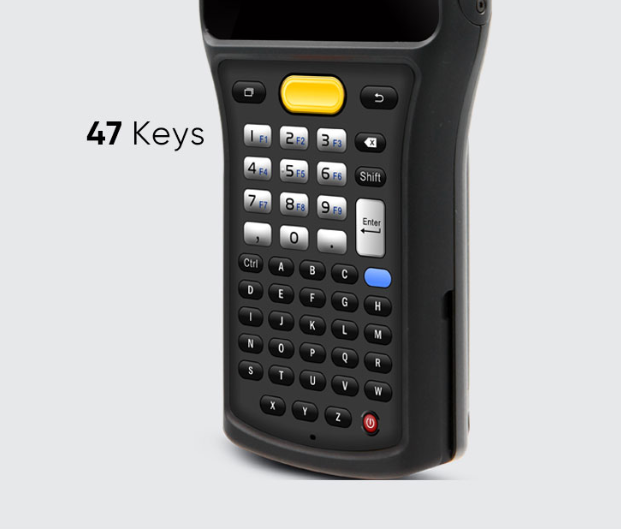

Main keyboard (Optional) : 27 keys / 37 keys / 47 keys;
Side keys: 2 scan keys + 2 volume keys + 1 user-defined key
Battery
6700 mAh removable main battery, 5000 mAh optional pistol battery, support QC3.0 and RTC; Built in 50mAh backup battery, pistol battery with meter; supporting battery hot swap, improving reliability and ensuring user data security
Standby: up to 680 hours (only main battery ; WiFi: up to 560h; 4G: up to 560h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 3.5 hours (charge device by standard adaptor and USB cable)
Display
4-inch high definition display, 800*480
Touch Panel
Multi-touch panel, gloves and wet hands supported
Sensor
Accelerometer sensor, light sensor, proximity sensor, gravity sensor
Notification
Sound, LED indicator, vibrator
Audio
1 microphone for noise cancellation; 1 speaker; 1 receiver
Card slot
1 slot for Micro SIM card, 1 slot for TF card
Interfaces
USB Type-C, USB 3.1, OTG, extended thimble
CPU
Octa-core, 2.0 GHz
RAM+ROM
UFS, 4GB + 64GB
Expansion
Supports up to 256GB Micro SD (TF) card
WLAN
Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,144,149,153,157,161,165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC,etc.
Vo-LTE
Support Vo-LTE HD video voice call
Bluetooth
Bluetooth 5.0
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
WWAN
2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
WCDMA: 850/900/1700/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28/B38/B39/B40/B41
Camera
Rear Camera
Rear 13 MP Autofocus with flash
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Barcode Scanning (optional)
2D Scanner
Zebra: SE4710/SE4750/SE4850/SE5500/SE5800
Honeywell: N6603/N6703/N6803FR;
CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Optional accessories (See details in Accessory Guide)
Separate handle with one button, Wrist Strap; Charging Cradle Handle + battery (handle battery 5000 mAh, one button)
Operating System
Android 13
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Operating Temp.
-4°F to 122°F / -20°C to 50°C
Storage Temp.
-40°F to 158°F / -40°C to 70°C
Humidity
5% RH to 95% RH (non condensing)
Drop Specification
Multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP67 per IEC sealing specifications ESD ±15 KV air discharge, ±8 KV conductive discharge
