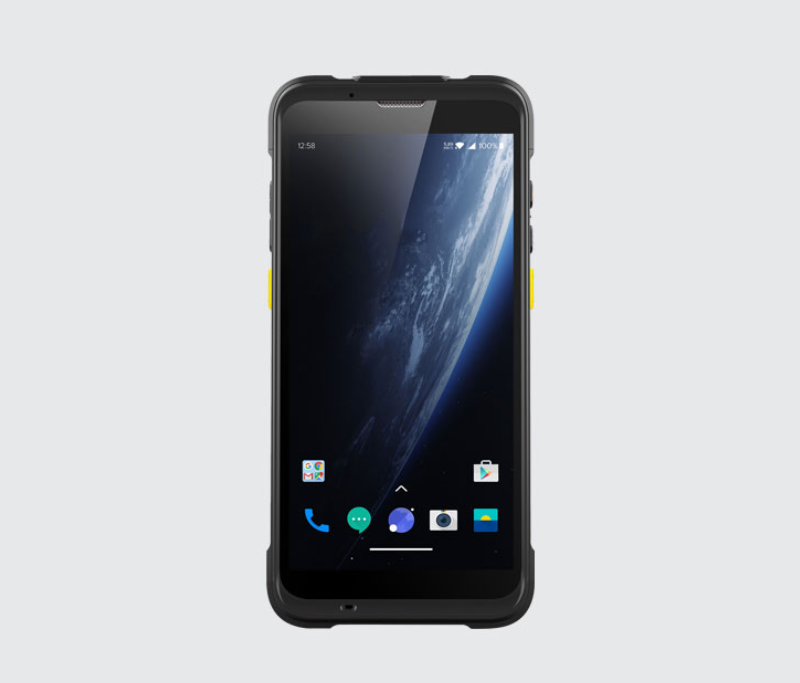

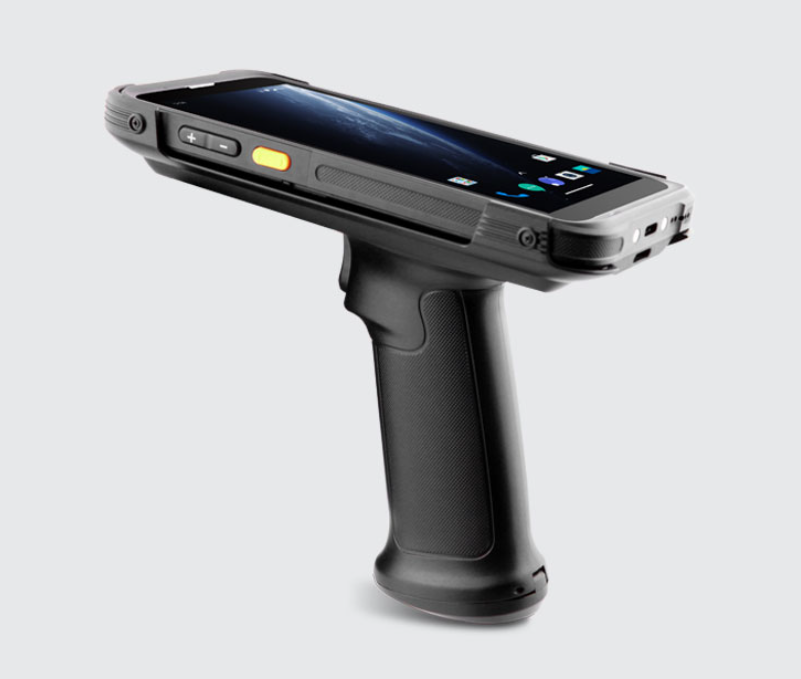

C66 Handheld Computer

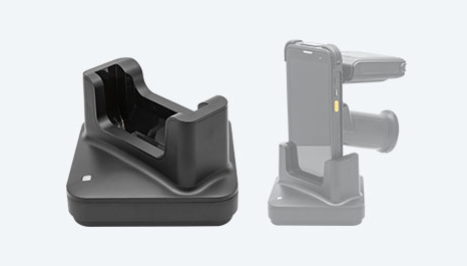

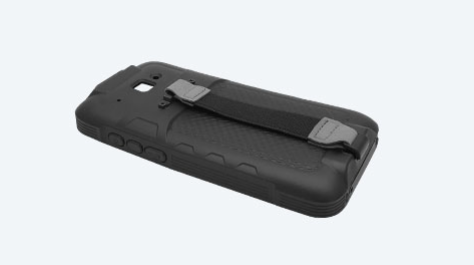

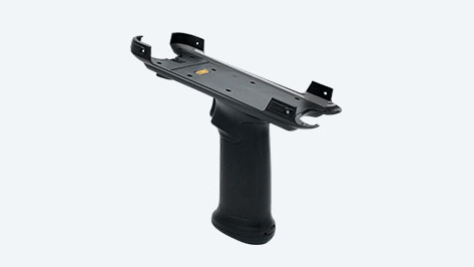

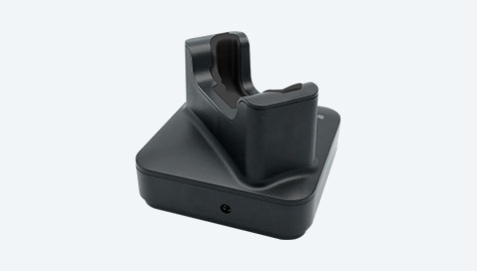

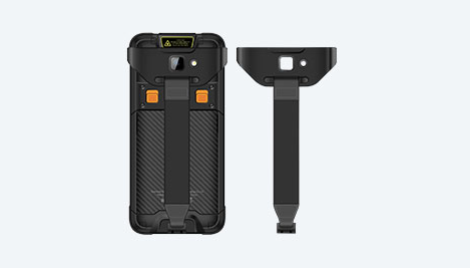

Compatible accessories
Standard accessories
Integration with your molding line
Specifications & docs
Dimensions
160.0 x 76.0 x 15.5 / 17.0mm
Weight
287 g (device with battery);
Display
5.5-inch high definition full display (18:9) , IPS 1440 x 720
Battery

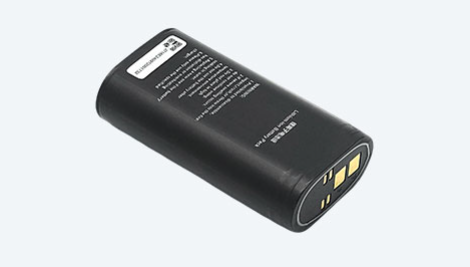

Removable main battery (normal version:4420 mAh; 5200 mAh optional pistol battery, support QC 3.0 and RTCStandby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Touch Panel
Multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator, vibrator
Interfaces

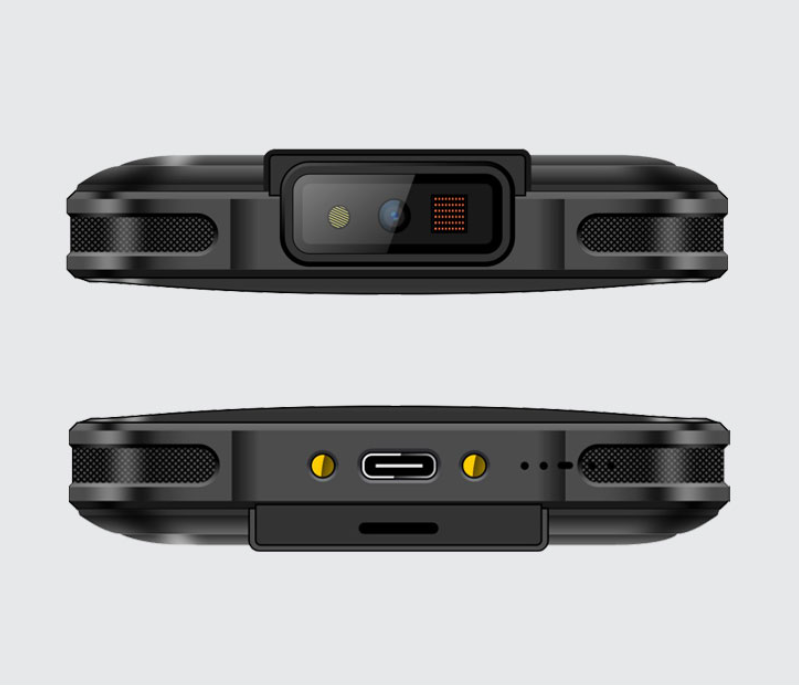

USB Type-C, USB 3.1, OTG, extended thimble
Card slot
1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio
2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad
1 power key, 2 scan keys, 2 volume keys
Sensors
Accelerometer sensor, light sensor, proximity sensor, gravity sensor, gyroscope sensor(optional) geomagnetic sensor(optional),
CPU
Octa-core, 2.0GHz
RAM+ROM
3GB + 32GB / 4GB + 64GB / 6GB + 128GB
Expansion
Supports up to 256GB Micro SD (TF) card
WLAN
Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;
Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, WPA3-Enterprise,etc.
WWAN (Europe, Asia)
2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0 WCDMA: 850/900/1900/2100MHz TD-SCDMA: A/F(B34/B39)
4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
Bluetooth
Bluetooth 5.1
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Note* C66 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.
Scan engine
Zebra: SE4710/SE4100;
Honeywell: N6603/N6703/6803FR/HS7;IA166S; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note* This function is optional
Operating System
Android 13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Operating Temp.
-20 ℃~+50 ℃
Storage Temp.
-40 ℃~+70 ℃
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range;

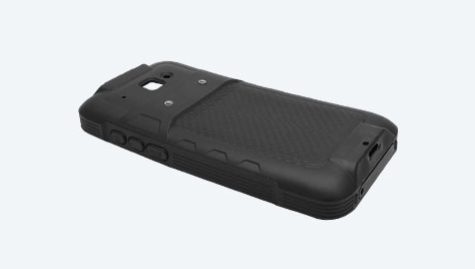

Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
MIL-STD-810H(SGS Test): Multiple 1.22 M drops (at least 20 times) to the plate across the operating temperature range
Tumble Specification
1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing
IP65 per IEC sealing specifications, IP67 optional
ESD
±15 KV air discharge, ±8 KV conductive discharge
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
UHF1
Engine
Based on Impinj E Series chips
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Impinj Gen2X
Supported
Protocol
EPC C1 GEN2 / ISO18000-6C
Antenna
Circular Polarized Antenna
Power
1W (30dBm, +5 dBm to +30 dBm adjustable)2W Optional (33dBm, for Latin America, etc.)
Max Read Range
28m (Impinj MR6 tag, size 70 x 15mm)28m (Impinj M750 tag, size 70 x 15mm)32m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate
1300+ tags/sec
Communication Mode
Pin Connector
Note* C66 UHF (Back Clip)* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.;* This function is optional
UHF2
Engine
Based on Impinj E Series chips
Frequency
865-868 MHz / 920-925 MHz / 902-928 MHz
Protocol
EPC C1 GEN2 / ISO18000-6C, supports GS1 EPC Gen2v2 Authenticate and ISO/IEC 29167-11Supports Impinj Gen2X
Antenna
Circular Polarized Antenna
Power
1W (30 dBm, support +5~+30 dBm adjustable)2W Optional (33 dBm, for Latin America, etc.)
Max Read Range
30m (Impinj MR6 tag, size 70 x 15mm)28m (Impinj M750 tag, size 70 x 15mm)31m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fastest Read Rate
1300+ tags/sec
Communication Mode
Pin Connector / Bluetooth

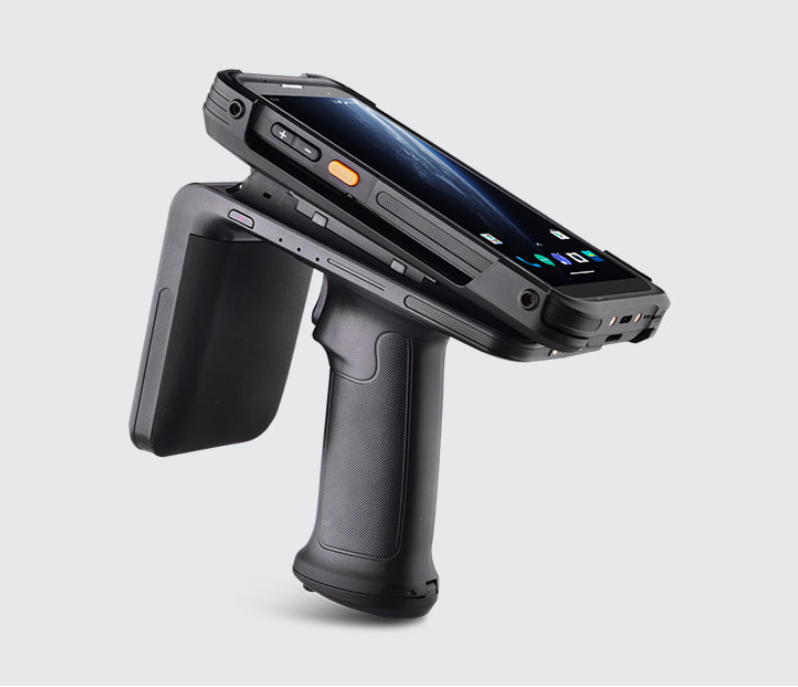

Note* C66 + R6 UHF Sled* Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.;* This function is optional
