C90 Mobile Computer
No items found.

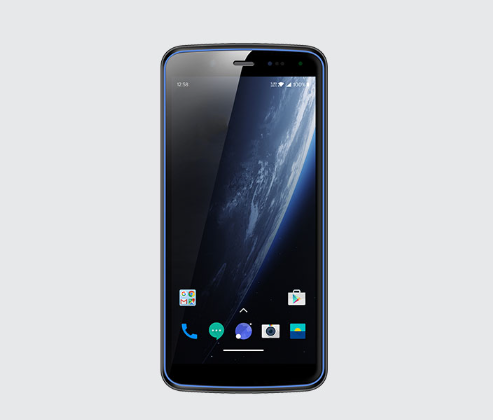

C90 Mobile Computer

€ 398.90 EUR
excl. VAT
CHAINWAY C90 is a rugged handheld computer that exhibits extremely powerful performance. Built with Android 10/14 and a high-performance processor, it features vigorous system configuration. With rich functionality features like barcode scanning, sturdy WiFi performance, NFC, front and rear cameras, it possesses the best price versus performance ratio. All these make C90 immensely perfect to be implemented in a wide spectrum of industries, including logistics, warehousing, retail, healthcare, etc.
High Performance Octa-Core 2.0Ghz
High Performance Octa-Core 2.0Ghz
IP67 & 1,5m drop
IP67 & 1,5m drop
Powerful Barcode Scanning
Powerful Barcode Scanning
Front and Rear Cameras, NFC
Front and Rear Cameras, NFC
Buy nowRequest a quote

Compatible accessories

C90 Charging cradle
C90 Charging cradle
CRD-C90-SCC
€ 54.90 EUR
excl. VAT
C90 Rugged rubber boot black
C90 Rugged rubber boot black
RB-C90-RR
€ 8.90 EUR
excl. VAT
C90 Rugged rubber boot White
C90 Rugged rubber boot White
RB-C90-RR
€ 8.90 EUR
excl. VAT
C90 Screen protector
C90 Screen protector
Screen Protector- Size: 5.7'', Thickness: 0.5mm.
€ 5.90 EUR
excl. VAT

Standard accessories

Adapter EU 5V 2A (included)
USB Cable (included)

Integration with your molding line

C90 Mobile Computer
comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.

Specifications & docs

Physical Characteristics
Performance Characteristics
Communication
PSAM (Optional)
Data Collection
Developing Environment
User Environment
Printing
Media
Ribbon
Other Specification
Documents & Manuals

Dimensions 158.5 x 76.0 x 13.1 mm

‍Weight 230g  (device with battery)

‍Display 5.7-inch (18:9), IPS LTPS 1440 x 720

‍Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

‍Power Main battery: built-in 5000 mAh

Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)

Continuous use: over 12 hours (depending on user environment)

Charging time: 2.5 hours (charge device by standard adaptor and USB cable)

‍Notification Sound, LED indicator, vibrator

‍Interfaces USB Type-C, USB 2.0, OTG

‍Card slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

‍Audio 2 microphones，1 for noise cancellation；1 speaker；receiver

‍Keypad Power, 2 scan keys, volume +/-

‍Sensors Light sensor, proximity sensor, gravity sensor

WLAN Support IEEE802.11 a/b/g/n/ac/d/e/h/i/k/r/v/w, 2.4G/5G dual-band, IPV4, IPV6; Support 5G PA

Fast roaming: PMKID caching, 802.11r, OKC

Operating Channels: 2.4G(channel 1~13), 5G(channel 36,38,40,42,44,46,48,52,56,60,64,100,104,108,112, 116,120,1 24,128,132,136,140,149,153,157,161,165), depends on local regulations

Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC,etc.

‍WWAN (Europe, Asia)

‍2G: GSM850/GSM900/DCS1800/PCS1900

3G: CDMA EVDO: BC0       WCDMA: B1/B2/B4/B5/B8       TD-SCDMA: A/F(B34/B39)

4G: B1/B2/B3/B4/B5/B7/B8/B20/B34/B38/B39/B40/B41

‍WWAN (America)

‍2G: GSM850/GSM900/DCS1800/PCS1900

3G: CDMA EVDO: BC0/BC1       WCDMA: B2/B4/B5/B8

4G: B2/B4/B5/B7/B8/B12/B17/B28A/B28B/B38

‍Bluetooth V2.1+EDR,3.0+HS and V4.1+HS, BT5.0

‍GNSS GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

2D Imager Scanner CM60

‍1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

‍2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

‍Note* This function is optional

‍

NFC

‍Frequency 13.56 MHz

‍Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.

‍ChipsM1 card (S50, S70), CPU card, NFC tags, etc.

‍Range2-4 cm

Operating System Android 10/14, GMS, FOTA, Soti MobiControl, Android Enterprise Recommended, Zero-Touch, 90-day security updates, SafeUEM supported

‍SDK Chainway Software Development Kit

‍Language Java

‍Tool Eclipse / Android Studio

Operating Temp.-20 ℃~+50 ℃

Storage Temp.-40 ℃~+70 ℃

‍Humidity 5% RH - 95% RH non condensing

‍Drop Specification Multiple 1.5 m / 4.92 ft. drops to the concrete across the operating temperature range

‍Tumble Specification 1000 x 0.5 m/ 1.64 ft. falls at room temperature‍

Sealing IP67 per IEC sealing specifications

‍ESD ±15 KV air discharge, ±8 KV conductive discharge

Front Camera 5 MP

‍Rear Camera 16MP +2MP Microphotography, Autofocus with flash

‍

‍

C90 Datasheet

C90 User Manual

‍
