CORE - Control, Optimization and Regulation Engine

€ 1,000.00 EUR

excl. VAT

ID CORE is a revolutionary process control engine that redefines injection molding intelligence. By integrating a high-precision 8-channel piezoelectric amplifier with a powerful edge computing platform, it serves as the autonomous brain for your smart mold. ID CORE provides unparalleled real-time insight and control, moving beyond simple monitoring to predictive optimization and native data management.

No items found.

No items found.

Compatible accessories

No compatible accessories for this product.

Standard accessories

No compatible accessories for this product.

Integration with your molding line

CORE - Control, Optimization and Regulation Engine

comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.

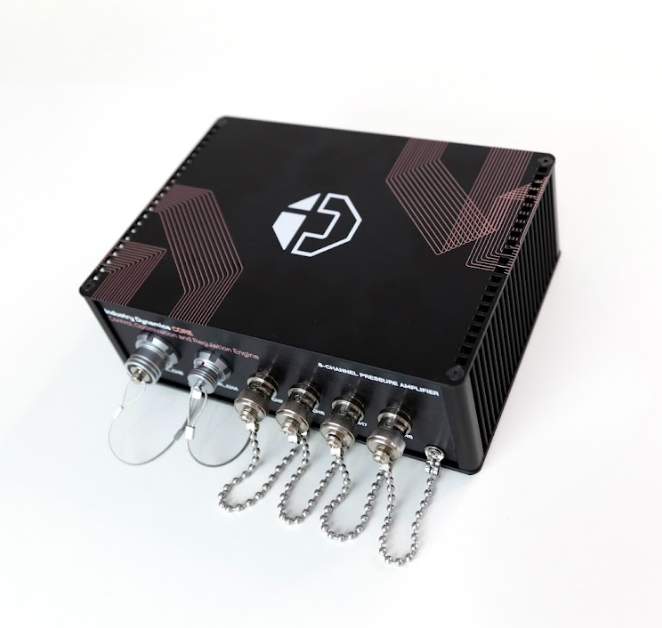

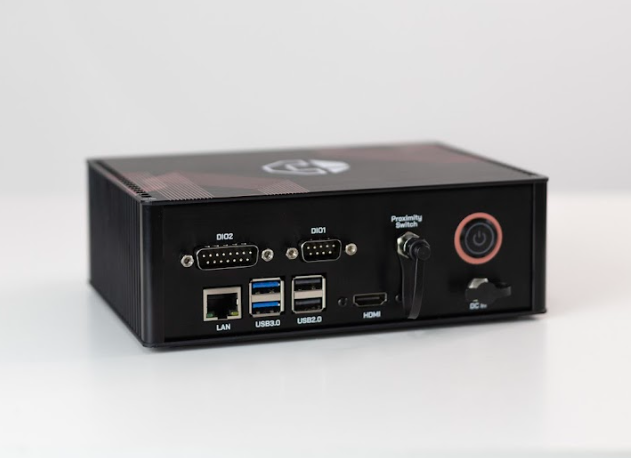

Engineered for the future of manufacturing, its innovative, all-in-one design combines an 8-channel high-resolution amplifier for piezoelectric cavity pressure sensors with a robust onboard processor. This integration provides the fastest possible response time for real-time process adjustments. The hardware is streamlined for simplicity, featuring dedicated mold-side connections for up to 8 cavity pressure sensors and machine-side I/O for seamless integration with any injection molding machine.

‍

All-in-One Design:

Integrated amplifier and computer save cabinet space, simplifies wiring, and reduces total cost.

Connectivity & Unlimited Data:

Streams all data to the cloud or to on-premises for unlimited history and analysis, accessible from any device.

Digital Process Twin:

Control and have an overview of your production from a central point.

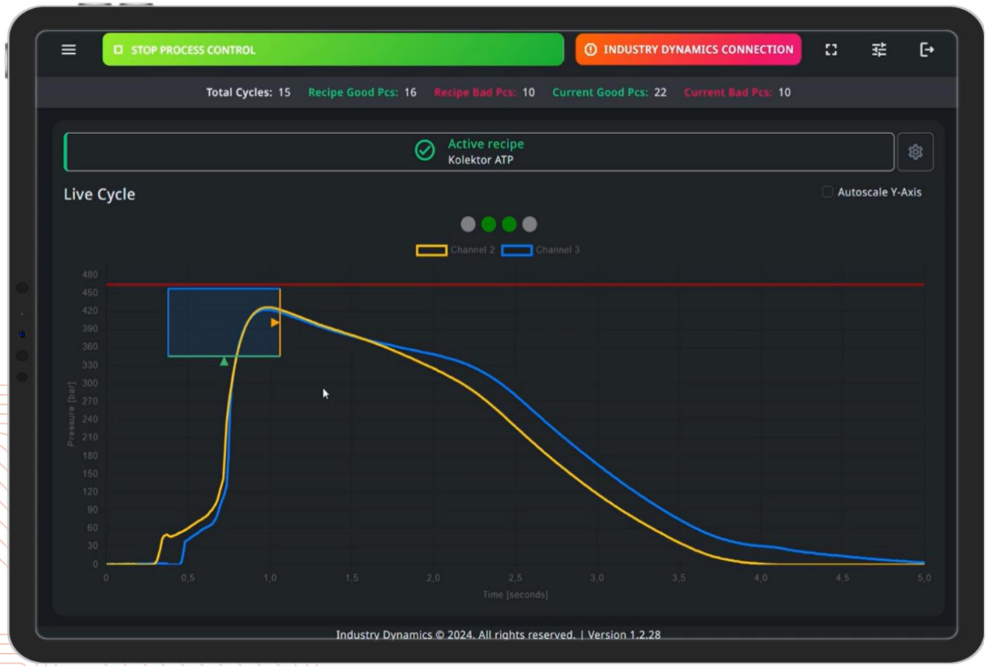

Unified Web Interface:

Access an intuitive dashboard from any PC, tablet, or smartphone to monitor and analyze your process from anywhere.

Industry 4.0 Ready:

Seamlessly integrates with MES, ERP, and other factory systems using standard protocols.

‍

Specifications & docs

Number of Channels 8 (Piezoelectric, Charge Input)

Dimensions (LxWxH) 180 x 130 x 60 mm

Operating Temperature 0 ... 50 °C

Voltage Supply 24 VDC

Power Consumption < 20 W

Protection Class IP54

‍

Network (LAN) 1x RJ45 Ethernet (1 Gbit/s)

Wireless Network Integrated Wi-Fi 5 (802.11ac), Dual-band

Personal Area Network Integrated Bluetooth 5.0

Display Output 1x HDMI (supports resolutions up to 4K)

Data Protocols OPC-UA, MQTT, REST API

Visualization Interface Web-based, responsive for any modern browser

(Chrome, Firefox, Edge, Safari)

‍

Piezoelectric Sensor Inputs (Channels 1-8)

Connector Type 1 Fischer 104, 11-pin female (up to 8 channels)

Connector Type 2 Fischer 103, 6-pin female (up to 4 channels on Ch. 1-4)

Connector Type 3 4x BNC, female (for single channel connections on Ch. 5-8)

Digital Inputs

Number 6

Type Galvanically Insulated

Voltage Range 0 ... 30 VDC

Logical Input Level High ≥ 10 V

Logical Input Level Low < 5 V

Digital Outputs

Number 13

Type Galvanically Insulated

Max Switching Voltage 30 VDC

Max Switching Current 50 mA per channel

Dedicated Cycle Start Input

Connector Type M8, 3-pin female

Function For proximity switch to detect start of

molding cycle

‍

‍
