CP20 Barcode Printer

€ 238.00 EUR

excl. VAT

Chainway CP20 is a barcode printer with exceptional printing performance and supports thermal transfer and thermal printing methods. The maximum printing speed is 152mm/s (6ips). CP20 provides a wide variety of communication interfaces, supports printer languages of major brands, and comes with adjustable print head pressure and ribbon pleat to ensure top-quality printing results. CP20 fully meets the high-quality printing needs of scenarios in retail, express delivery, warehousing, manufacturing and other industries.

Simple Operation, Easy Deployment

Simple Operation, Easy Deployment

USB, Ethernet, Serial, Bluetooth, Wi-Fi

USB, Ethernet, Serial, Bluetooth, Wi-Fi

TSPL, ZPL, EPL, DPL Emulation

TSPL, ZPL, EPL, DPL Emulation

Up to 300m Ribbons, Adjustable Ribbon Wrinkles

Up to 300m Ribbons, Adjustable Ribbon Wrinkles

Seagull Driver Supported

Seagull Driver Supported

No items found.

Compatible accessories

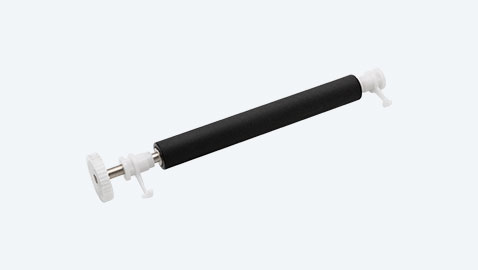

CP20 203dpi platen roller module

CP20 203dpi platen roller module

PRM-CP20-203DPI

€ 18.60 EUR

excl. VAT

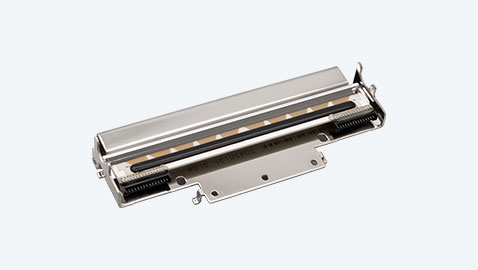

CP20 203dpi TPH

CP20 203dpi TPH

TPH-CP20-203DPI

€ 82.60 EUR

excl. VAT

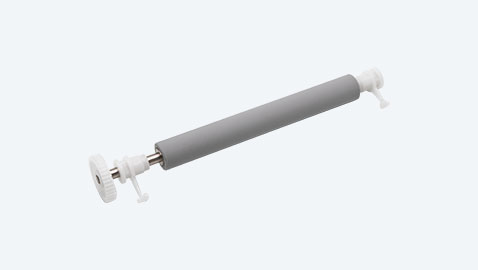

CP20 300dpi platen roller module

CP20 300dpi platen roller module

PRM-CP20-300DPI

€ 18.60 EUR

excl. VAT

CP20 300dpi TPH

CP20 300dpi TPH

TPH-CP20-300DPI

€ 152.60 EUR

excl. VAT

CP20 Cutter module

CP20 Cutter module

CM-CP20-4IN

€ 110.60 EUR

excl. VAT

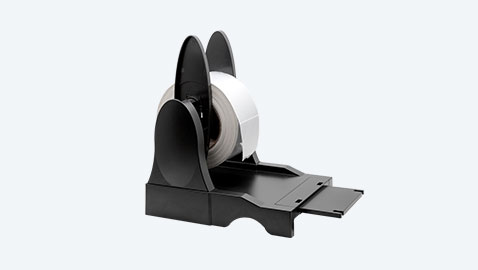

CP20 External roll holder

CP20 External roll holder

ERH-CP20

€ 19.00 EUR

excl. VAT

CP20 Peel-off module

CP20 Peel-off module

PM-CP20

€ 42.00 EUR

excl. VAT

Standard accessories

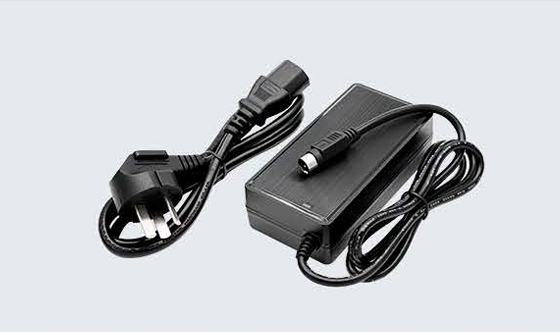

CP20 AC Adapter

CP20 USB

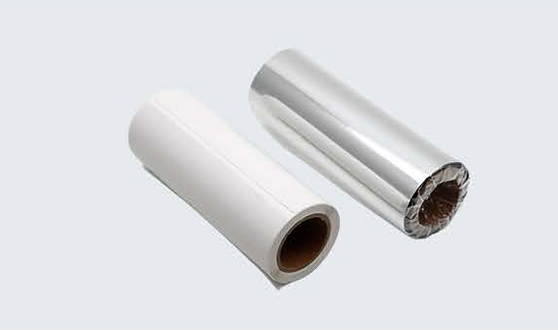

CP20 Label and Ribbon sample

Integration with your molding line

CP20 Barcode Printer

comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.

Specifications & docs

Dimensions

282mm × 232mm × 171mm

Weight

‍2.56kg / 90.30oz.

Interfaces

‍Stardard version: USBOptional: Serial / LAN / Wi-Fi / Bluetooth

Sensors

‍Gap sensor, cover opening sensor, black mark sensor, ribbon sensor

Power Supply

‍AC100-240V, 2A, 50-60HzDC 24V / 2.5A / 60W

Storage‍

8MB Flash Memory / 8MB SDRAM

‍Expansion

‍Flash Memory can be expanded Max. 4GB

SDK

Windows / iOS / Android / Linux / Mac

Operating Temp.

‍5°C ~ 40°C (41°F ~ 104°F), humidity 25% to 85% non-condensing

Storage Temp.

‍-40°C to 60°C (-40°F to 140°F), humidity 25% to 85% non-condensing

Printing Method

‍Thermal transfer / Direct thermal

Resolution

‍203dpi / 300dpi

Max. Printing Speed

‍152mm (6")/s, 127mm (5")/s

Max. Printing Width

‍104mm (4.09")

Max. Printing Length

‍1778mm (70"), 889mm (35")

Types

‍Continuous, gap, black mark, fan-fold and punched hole

Width

‍25.4 ~ 118mm (1.0" ~ 4.6")

Thickness

‍0.06 ~ 0.254mm (2.36 ~ 10mil)

Core Diameter

‍25.4 ~ 76.2mm (1" ~ 3")

Label Length

‍10 ~ 1778mm (0.39" ~ 70")

Label Roll Capacity

‍127mm (5") OD (External Diameter)

Width

‍110mm

Capacity

‍Max .300m

Processor‍

32- bit CPU

Driver

‍Windows

Print Head Life

‍30km or 3months

Internal Fonts

‍8 alpha - numeric bitmap fonts, Windows fonts are downloadable from software

Barcodes

‍1D: Code 39, Code 93, Code 128UCC, Code 128, subsets A, B, C, Codabar, Interleaved 2 of 5, EAN -8, EAN -13, EAN-128, UPC - A , UPC-E , EAN and UPC 2(5) digits add - on, MSI. PLESSEY, POSTNET, China POST, GS1DataBar, Code 112D: PDF -417, Maxicode, DataMatrix, QR code, Aztec

Rotation

‍0°, 90°, 180°, 270°

Emulation

‍TSPL, EPL, ZPL, DPL

Factory Options

‍Serial / Lan / wifi / Bluetooth

Dealer Options

‍External label roll holderPeeler moduleCutter module

Agency Approval

‍FCC, CE, CCC, RoHS

Documents & Manuals

‍CP20 Datasheet

CP20 Accessories Guide

‍
