IDS-C-B2 Cavity Pressure Sensor 2.5mm
€ 100.00 EUR
excl. VAT
Precision crystal elements, tailored material selection and minimal tolerances in production make the cavity pressure sensors high-precision instruments that deliver a reliable, undistorted pressure signal. Its well-proven design guarantees highest durability and consistent performance over its entire lifetime. In combination with the single wire cable and the mounting aids, the sensor can easily be installed and integrated into injection molding systems.
No items found.

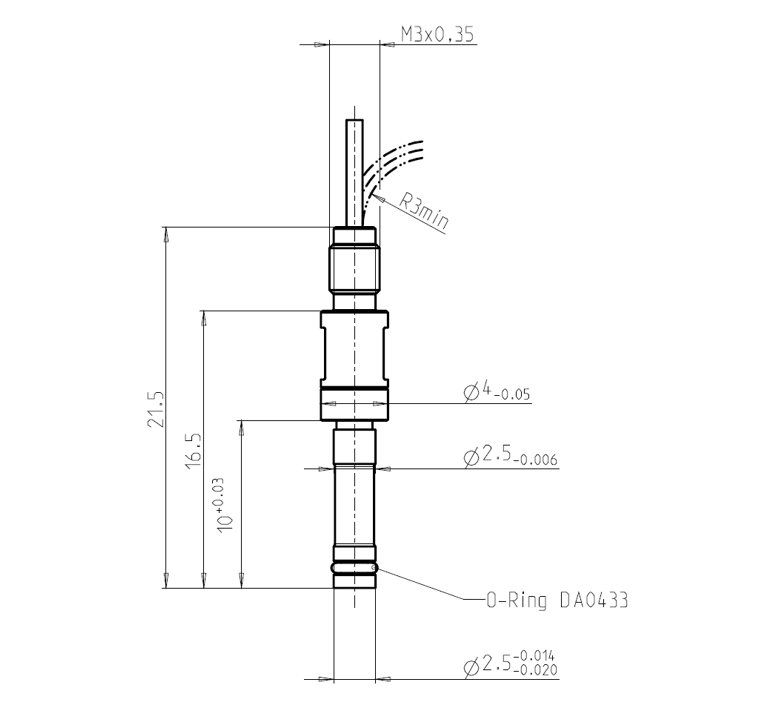

Diameter 2.5mm
.png)
Max mold temp. 200°C
Max melt temp. 450°C
.png)
Sensitivity 5 pC/bar
.png)
Single wire
.png)
Max. 2000 bar
Compatible accessories
No compatible accessories for this product.
Standard accessories
IDS-C Single wire (included)
IDS-C O-Ring spare seal (Included)
Integration with your molding line
IDS-C-B2 Cavity Pressure Sensor 2.5mm
comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.
Specifications & docs
Key Features
- Measures Pressure Profiles in Injection Molding Systems
- Pressure Range up to 2000 bar
- Suitable for High Temperatures up to 450°C
- Compact and Robust Design
- Single Wire Cable
- Installation Directly into Mold Cavity for Unmatched Precision
- Connector type: M4x0.35
Sensor Type
Direct
Tip Diameter
2.5 mm
Operating Principle
Piezoelectric, Charge Output
Sensing Element
Quartz
Dynamic Measuring Range
0 … 2000 bar
Overload Pressure
2500 bar
Sensitivity (nominal)
5 pC/bar ± 2 %
Linearity
≤ ± 1 % FSO
Temperature Mold
200 °C
Temperature Melt (front of sensor)
450 °C
Internal Isolation Resistance
> 1013 Ohm (25 °C)
Natural Frequency
80 kHz
