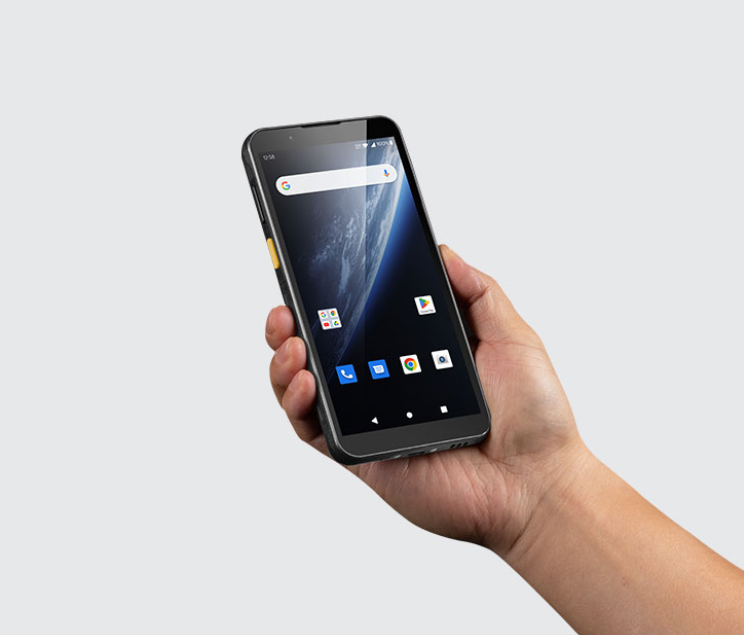

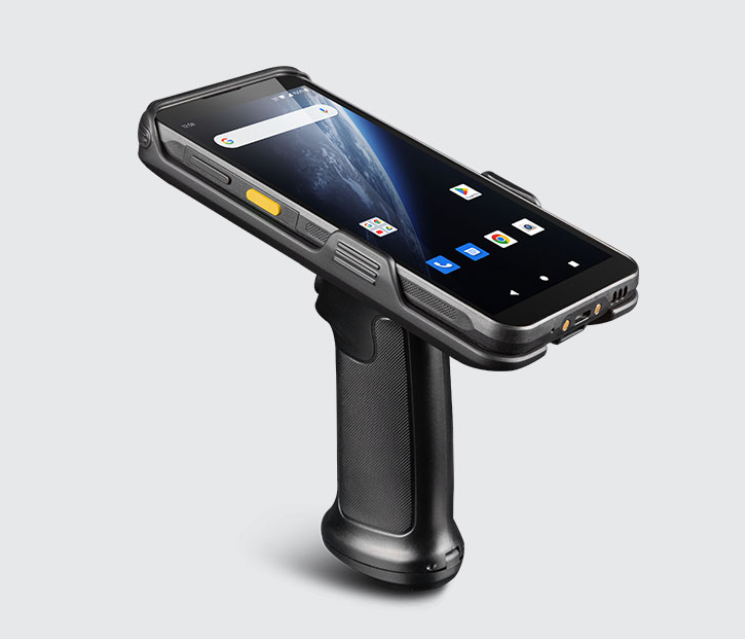

MC51 5G Mobile Computer

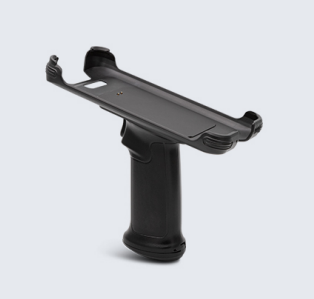

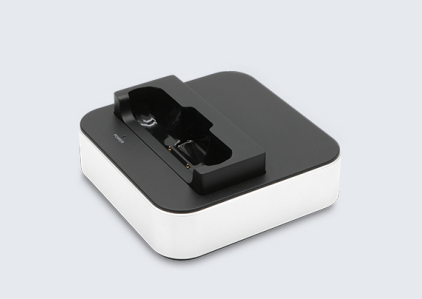

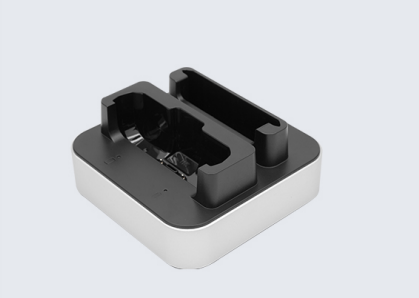

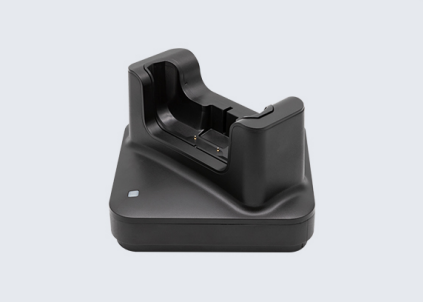

Compatible accessories

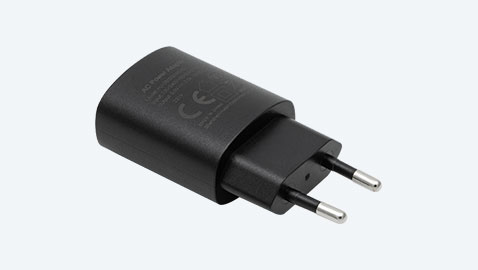

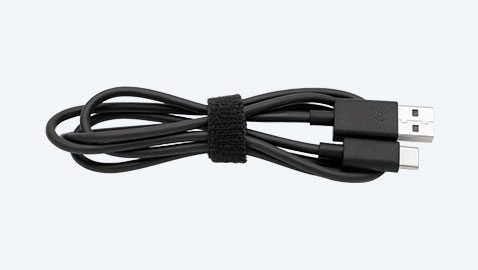

Standard accessories
Integration with your molding line
Specifications & docs
Dimensions
161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61 in.
Weight
297g / 10.48oz. (device with battery)
Display
6-inch high definition display (18:9), 1440 x 720

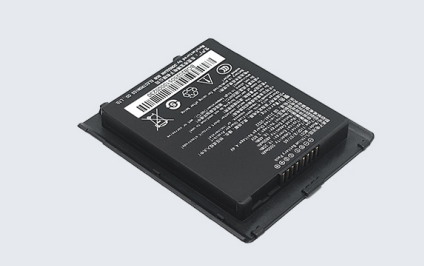

Battery
5000mAh removable main battery, support QC3.0 and RTC; Support Battery Management System; Hot swap battery backup
Touch Panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Notification
Sound, LED indicator, vibrator
Interfaces
USB Type-C, USB 3.1, OTG
Card slot
1 for SIM card, 1 for SIM or TF card, Supports eSIM (optional)
Audio
2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver

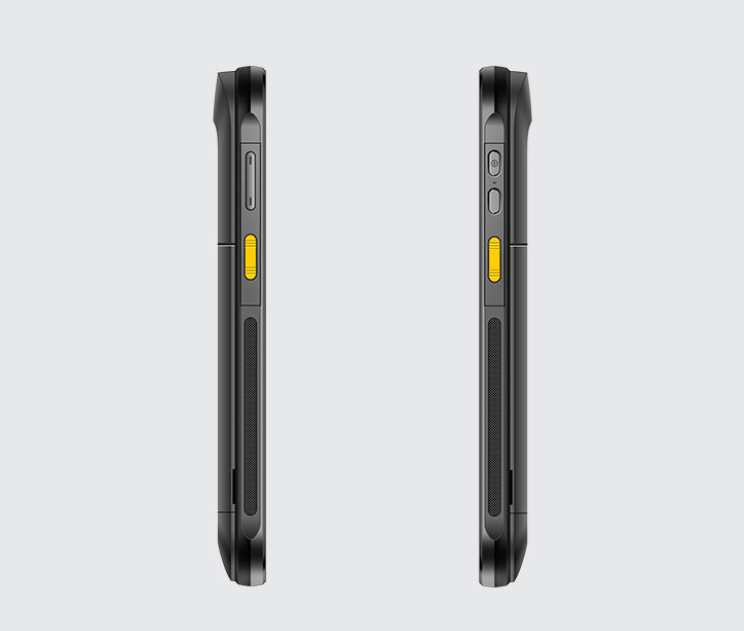

Keypad
Power key, 2 scan keys, volume (+/-) keys, 1 multifunctional key
Sensors
G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope
CPU
Qualcomm Octa-core, 2.4GHz
RAM+ROM
UFS: 4GB + 64GB / 8GB + 256GB (optional)
Expansion
Supports up to 256GB TF card(Supports Extreme Micro SD Card 512GB)
WLAN
Support 802.11 a/b/g/n/ac/ax-6E, 2.4G/5G tri-band, IPV4, IPV6; 2*2 MIMO antennas
Fast roaming: PMKID caching, 802.11r, OKC
Operating Channels: 2.4G (channel 1~13), 5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAPLTS, PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc
WWAN (Europe, Asia)
2G: GSM / EDGE / GPRS (850/900/1800)
3G: WCDMA (B1/B5/B8)
4G: FDD-LTE (B1/B3/B5/B7/B8/B20/B28A/B28B) TDD-LTE (B34/B38/B39/B40/B41)
5G: N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N77/N78/N79
Bluetooth
Bluetooth 5.2
Vo-LTE
Support Vo-LTE HD video voice call
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
Front Camera
5MP
Rear Camera
16MP Autofocus with flash
UHF RFID
For detailed specification, please check MC51 UHF datasheet
2D Scanner
Zebra: SE4710; SE55; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Note* This function is optional
Operating System
Android 14
SDK
Chainway Software Development Kit
Language
Java
Tool
Eclipse / Android Studio
Operating Temp.
-4°F to 122°F / -20°C to +50°C
Storage Temp.
-40°F to 158°F / -40°C to +70°C
Humidity
5% RH - 95% RH non condensing
Drop Specification
Multiple 1.5m / 4.92ft. drops to the concrete across the operating temperature rangeMIL-STD-810H (SGS Test): Multiple 1.5 m/4.92 ft. drops to concrete across the operating temperature range
Tumble Specification
1000 x 0.5m / 1.64ft. falls at room temperature
Sealing
IP67 per IEC sealing specifications
ESD
±15 KV air discharge, ±8 KV conductive discharge Communication
Frequency
13.56 MHz
Protocol
ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
