MC62 Mobile Computer

€ 585.90 EUR

excl. VAT

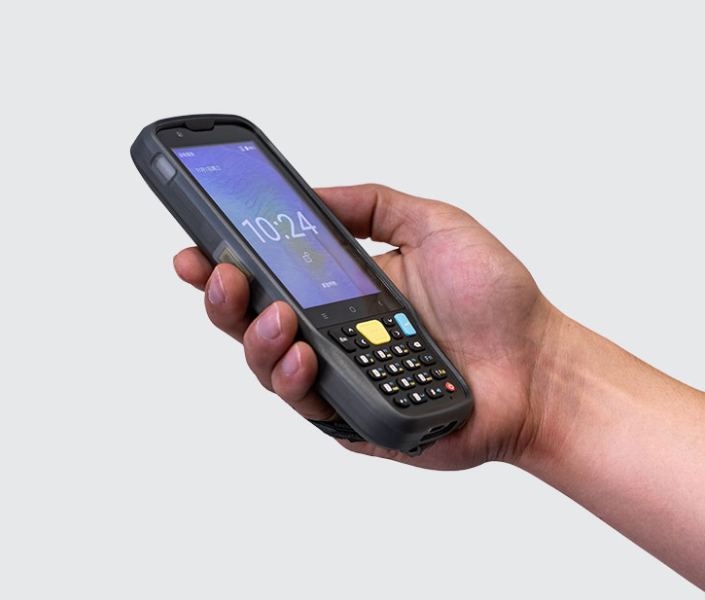

Chainway MC62 is a lightweight and portable high-performance mobile computer. With Android 13, octa-core processor, 4-inch touchscreen and 5000mAh removable battery, the excellent configuration delivers highly efficient operation. It supports barcode scanning, NFC, 13MP camera, multiple wireless connections, and features IP67 protection rating, 1.5 meters drop resistance. The mobile computer is thus widely applicable in various fields including warehousing, logistics, retail, finance, transportation, and manufacturing, helping users significantly improve work efficiency.

5000mAh Removable battery

5000mAh Removable battery

High Performance Octa-Core 2.0Ghz

High Performance Octa-Core 2.0Ghz

IP67 & 1,5m drop

IP67 & 1,5m drop

One hand operation

One hand operation

Powerful Barcode Scanning

Powerful Barcode Scanning

Front and Rear Cameras, NFC

Front and Rear Cameras, NFC

Compatible accessories

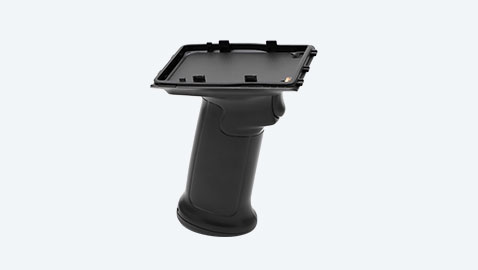

MC62 Pistol grip

MC62 Pistol grip

TRG-C62-PG

€ 41.80 EUR

excl. VAT

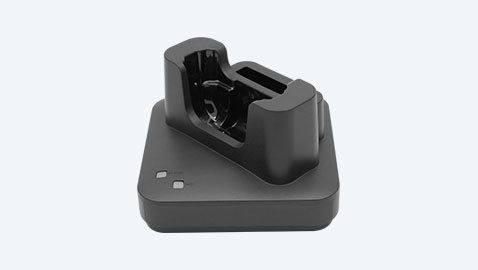

MC62 Charging cradle

MC62 Charging cradle

CRD-C62-RBC For MC62 device and one additional main battery. For use with DCPWR-12V2A-EU

€ 40.40 EUR

excl. VAT

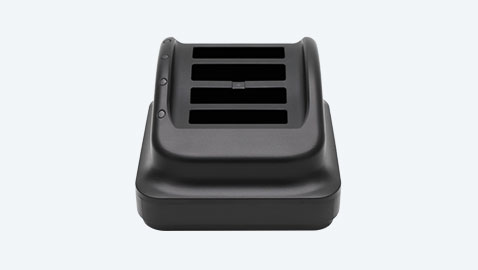

MC62 Charging cradle for main battery

MC62 Charging cradle for main battery

CRD-C62-MBC For up to 4 main batteries. For use with DCPWR-12V2A-EU

€ 46.00 EUR

excl. VAT

24W (12V 2A) adapter

24W (12V 2A) adapter

DCPWR-12V2A-EU 24W DC adapter

€ 15.50 EUR

excl. VAT

Charging base

Charging base

CRD-MCB 4 slot charging base. Use with DCPWR-12V5A-EU

€ 65.80 EUR

excl. VAT

60W (12V 5A) adapter

60W (12V 5A) adapter

DCPWR-12V5A-EU 60W DC adapter

€ 32.40 EUR

excl. VAT

MC62 Main battery

MC62 Main battery

BTRY-C62-50MA Main battery, 5000 mAh, Li-ion

€ 41.80 EUR

excl. VAT

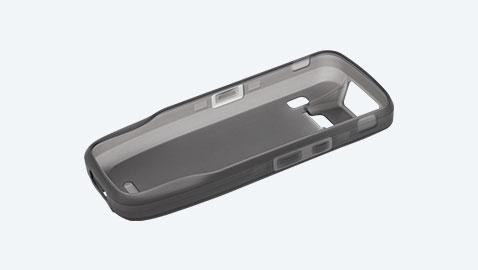

MC62 Rugged rubber boot

MC62 Rugged rubber boot

RB-C62-RR

€ 8.40 EUR

excl. VAT

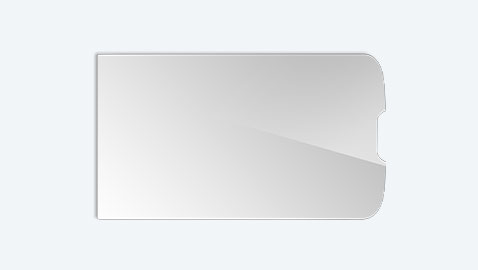

MC62 Screen protector

MC62 Screen protector

SP-C62

€ 5.00 EUR

excl. VAT

Standard accessories

Adapter EU 5V 2A (included)

USB Cable (included)

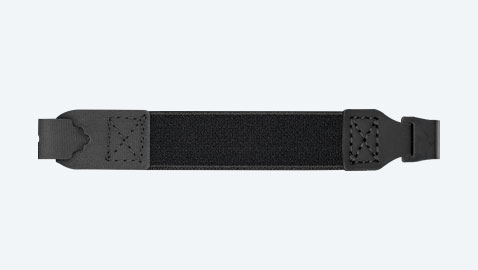

Hand Strap (included)

MC62 main battery (included)

Integration with your molding line

MC62 Mobile Computer

comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.

Specifications & docs

Dimensions

‍163.5 x 67.0 x 17.1mm/6.44 x 2.64 x 0.67in

‍Weight

‍256g / 9.03oz (device with battery)

‍Display

‍4-inch, 480 x 800

‍Touch Panel

‍Multi-touch panel, gloves and wet hands supported

‍Power

‍5000mAh removable battery, support quick charge

‍Notification

‍Sound, LED indicator, vibrator

‍Expansion Slot

‍1 slot for SIM card, 1 slot for SIM or TF card

‍Interfaces

‍USB Type-C, USB 2.0, OTG

‍Audio

‍2 microphones, 1 for noise reduction, back; 1 speaker; receiver

‍Keypad

‍Main keypad , 2 scan keys, multi-function keys

‍Sensors

‍Gravity sensor, distance sensor, light sensor; Gyroscope (optional), geomagnetic sensor (optional)

CPU

‍Octa-core, 2.0GHz

‍RAM+ROM

‍4GB + 64GB

‍Expansion

‍Supports up to 256GB Micro SD (TF) card

WLAN

‍802.11d/e/h/i/j/k/r/v/w with companion D-die, Dualband( 2.4GHz and 5GHz) single stream 802.11 a/b/g/n/ac RF, 20/40/80MHz bandwidth, 5G PA

‍WWAN

‍2G: GSM (B2 / B3 / B5 / B8)

3G: WCDMA (B1 / B2 / B4 / B5 / B8) TD-SCDMA (B34 / B39)

4G: FDD-LTE (B1 / B2 / B3 / B4 / B5 / B7 /B8 / B12 / B17 / B20 / B28A / B28B) TDD-LTE (B34 / B38 / B39 / B40 / B41)

‍Bluetooth

‍Bluetooth 5.0

‍Vo-LTE

‍Support

‍GNSS

‍GPS/AGPS, GLONASS, BeiDou, Galileo

Operating Temp.

‍-4 °F to 122 °F / -20 °C to 50 °C

‍Storage Temp.

‍-40 °F to 158 °F / -40 °C to 70 °C

‍Humidity

‍5% RH - 95% RH non condensing

‍Drop Specification

‍Multiple 1.5 m / 4.9 ft. drops to the concrete across the operating temperature range

‍Tumble Specification

‍1000 x 0.5 m / 1.64 ft. falls at room temperature

‍Sealing

‍IP67 per IEC sealing specificationsESD±15 KV air discharge, ±8 KV conductive discharge

Front Camera

‍5MP

‍Rear Camera

‍13MP Autofocus with flash

MC62 Data Sheet (2024-07-03)

MC62 User Manual (2024-09-04)

MC62 Accessories Guide (2025-03-05)
