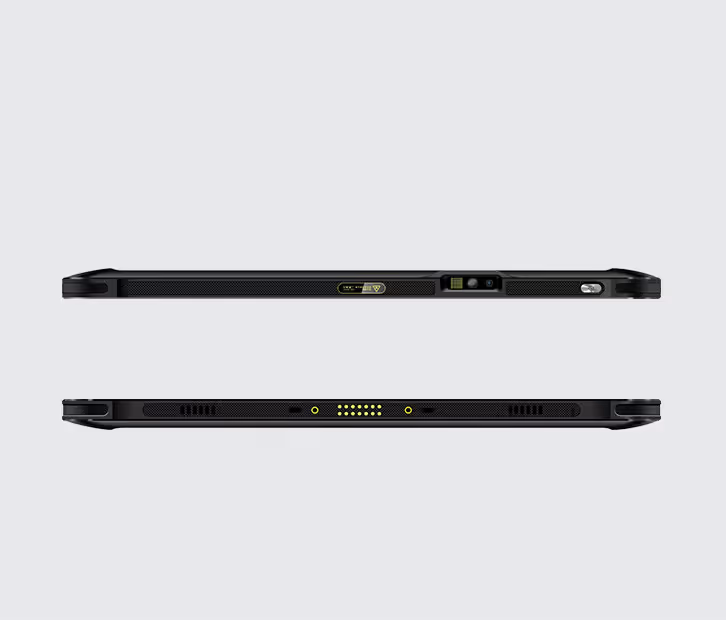

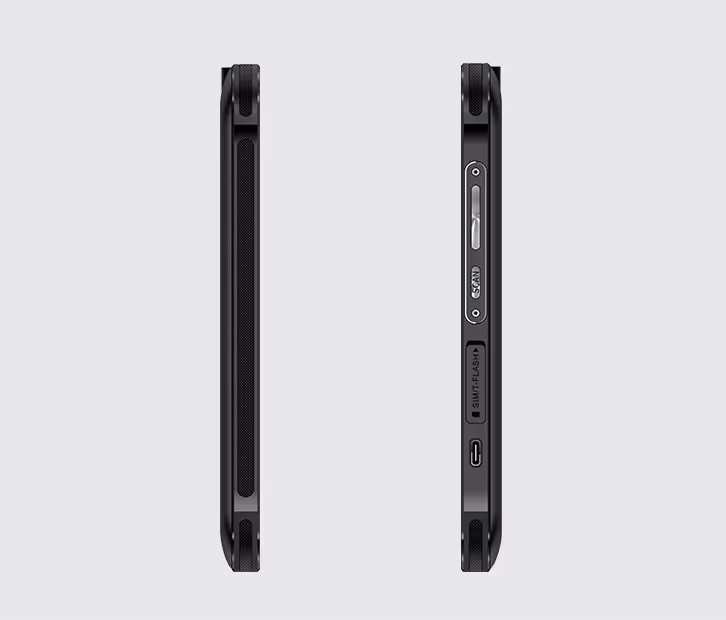

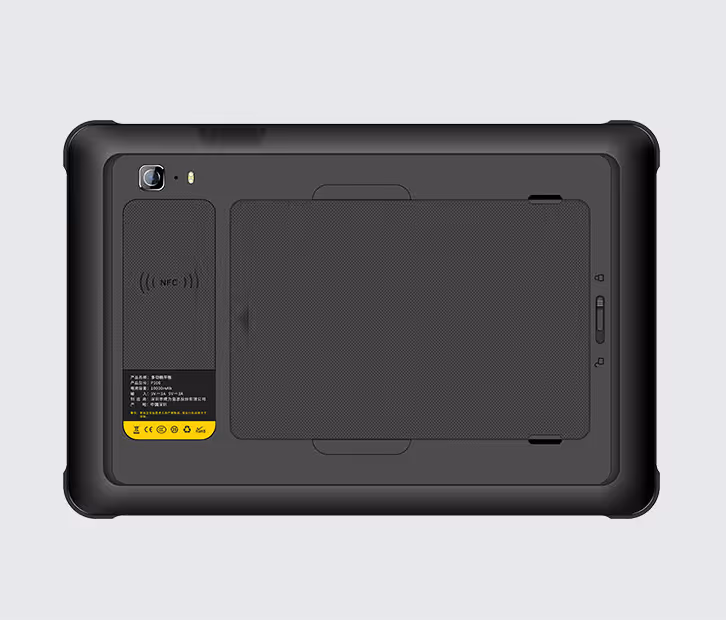

P100S Industrial Tablet

€ 557.00 EUR

excl. VAT

The Chainway P100S is the latest 4G industrial tablet designed for high performance. Its 10.95-inch display offers an immersive viewing experience, while Android 14 and a powerful CPU deliver seamless and efficient operation. Equipped with a 10,000mAh removable smart battery, it powers through even the longest shifts. With IP67 sealing, it’s touch enough to withstand the harshest environments. Whether in retail, logistics, warehousing, manufacturing, or beyond, the P100S is your trusted partner for efficient and reliable operations.

High Performance Octa-Core 2.2Ghz

High Performance Octa-Core 2.2Ghz

Android 14

Android 14

10.95-inch HD Display (1920x1200)

10.95-inch HD Display (1920x1200)

10,000mAh Removable Battery

10,000mAh Removable Battery

IP67 & 1.2m Drop Resistance

IP67 & 1.2m Drop Resistance

Long-range Barcode scanning

Long-range Barcode scanning

NFC, PSAM and More

NFC, PSAM and More

13MP Rear Camera

13MP Rear Camera

Compatible accessories

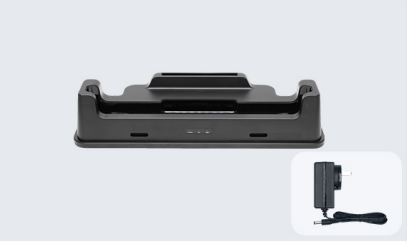

P100 Charging Cradle

P100 Charging Cradle

CRD-P100-RBCE - Charging Cradle for device, use with DCPWR-12V2A EU adaptor.

€ 120.00 EUR

excl. VAT

P100 Adapter

P100 Adapter

CRD-P100-INS Insert for P100 cradle cup.

€ 10.00 EUR

excl. VAT

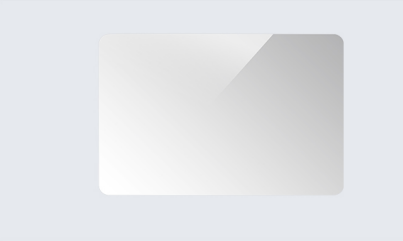

P100 Glass Screen Protector

P100 Glass Screen Protector

CRD-P100-INS Tempered glass screen protector

€ 10.00 EUR

excl. VAT

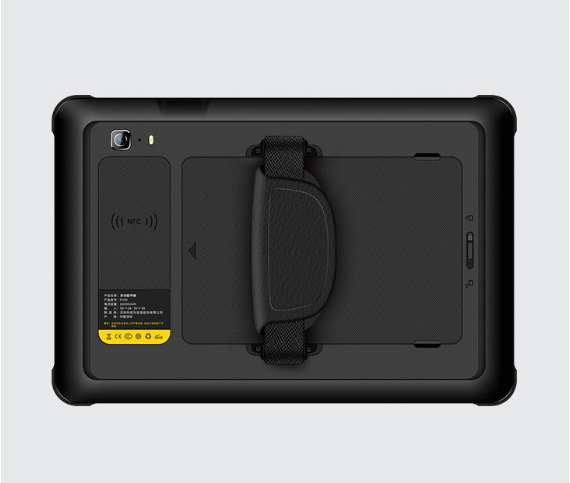

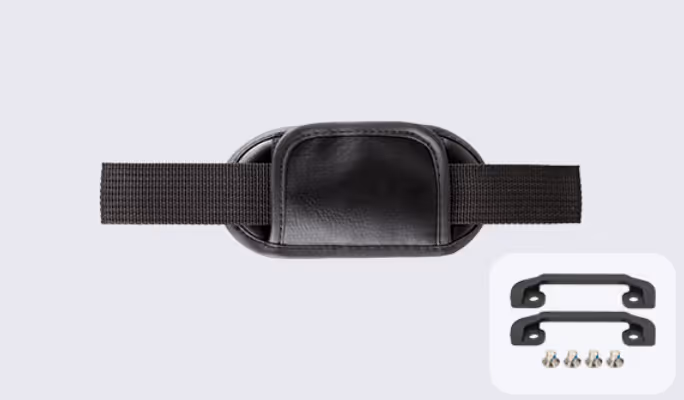

P100 Hand Strap

P100 Hand Strap

RB-P100-HS - Use the shoulder strap together with the shoulder/wrist strap buckle and the fixing screw.

€ 18.00 EUR

excl. VAT

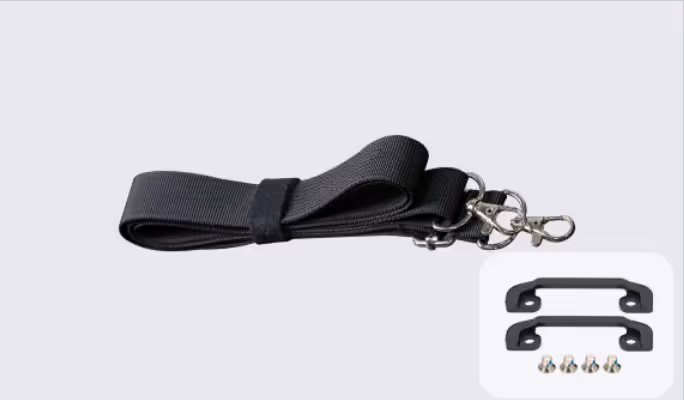

P100 Shoulder Strap

P100 Shoulder Strap

RB-P100-SS - Use the shoulder strap together with the rubber boot, the shoulder/wrist strap buckle, and the fixing screw.

€ 18.00 EUR

excl. VAT

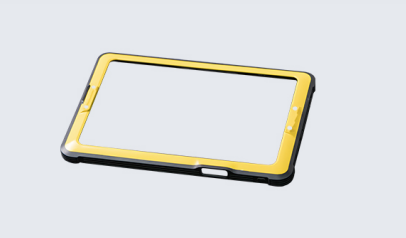

P100 Rugged Rubber Boot

P100 Rugged Rubber Boot

RB-P100-RR - Rugged Rubber Boot, omni-directional protected.

€ 15.00 EUR

excl. VAT

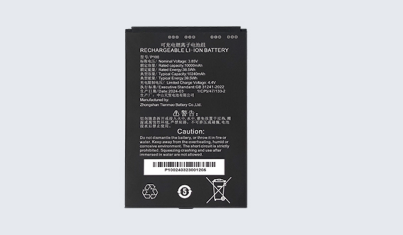

P100 Main battery

P100 Main battery

BTRY-P100-100MA

€ 60.00 EUR

excl. VAT

Standard accessories

Adapter EU 5V 2A (included)

USB Cable (included)

P100 Main Battery (included)

Integration with your molding line

P100S Industrial Tablet

comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.

Specifications & docs

Dimensions

‍263.5 x 175.0 x 13.5 mm / 10.37 x 6.89 x 0.53 in. (for standard version)

‍Weight

‍802g / 28.29 oz. (for standard version)

‍Display

‍10.95", 1920x1200

‍Touch Panel

‍Corning Glass, multi-touch panel, gloves and wet hands supported

‍Power

‍10000mAh removable main battery with meter, support fast charge

‍Expansion Slot

‍1 PSAM card (optional); 1 slot for Nano SlM card, 1 slot for Nano SlM /TF card

‍Interfaces

‍USB 3.0 Type-C, OTG, support USB Type-C Digital Earphone‍

Audio

‍2 microphone, 2 speakers

‍Keypad

‍1 scan key, 1 power key, 1 volume keys (+/-), 2 virtual keys

CPU

‍Octa-core 2.2 GHz

‍RAM+ROM

‍4GB + 64GB

‍Expansion

‍Supports up to 512 GB Micro SD card

WLAN

‍Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band; Wi-Fi 6E (optional)

‍WWAN

‍2G: GSM:B2/B3/B5/B8

3G: WCDMA:B1/B2/B4/B5/B8

4G: TDD LTE: B34/B38/B39/B40/B41 190M FDD LTE: B1/B2/B3/B4/B5/B7/B8/B12/B17/ B18/B20/B28ab

‍Bluetooth

‍Bluetooth V5.2, support Bluetooth headset

‍Vo-LTE

‍Support Vo-LTE HD video voice call Galileo

‍GNSS

‍GPS/AGPS, GLONASS, BeiDou, Galileo

Protocol

‍IS07816

‍Slots

‍1 PSAM card slot

‍Note*

This function is optional

Scan engine

‍Zebra SE4100, SE55; CM60

‍1D Symbologies

‍UPC/EAN, Code128, Code39, Code93, Codell, interleaved 2 of 5, Discrete 2 of 5, chinese 2 of 5, Codabar, Msl, Rss,etc.

‍2D Symbologies

‍PDF417, MicroPDF417, composite, RsS, TLC-39Datamatrix, QR code, Micro QR code, Aztec, Maxicode;Postal Codes: Us PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KlX), etc.

NFC Frequency

‍13.56 MHZ

‍Protocol

‍IS014443A/B, IS015693, NFC-IP1, NFC-IP2, etc.

‍Chips

‍M1 card (s50, s70), CPU card, NFC tags, etc.

‍Range

‍2-4 cm

Front Camera

‍5 MP

‍Rear Camera

‍13 MP Autofocus with flash

Operating Temp.

-20°C to 50°C

‍Storage Temp.

-40°C to 70°C

‍Humidity

‍5% RH-95% RH (non condensing)

‍Drop Specification

‍MIL-STD-810H (SGS Test): Multiple 1.2 m / 3.94 ft. drops to concrete across the operating temperature range

‍Sealing‍

IP67 per lEC sealing specifications

‍ESD

‍±15 KV air discharge, ±8 KV conductive discharge

Datasheet:

P100S-EN.pdf
‍
