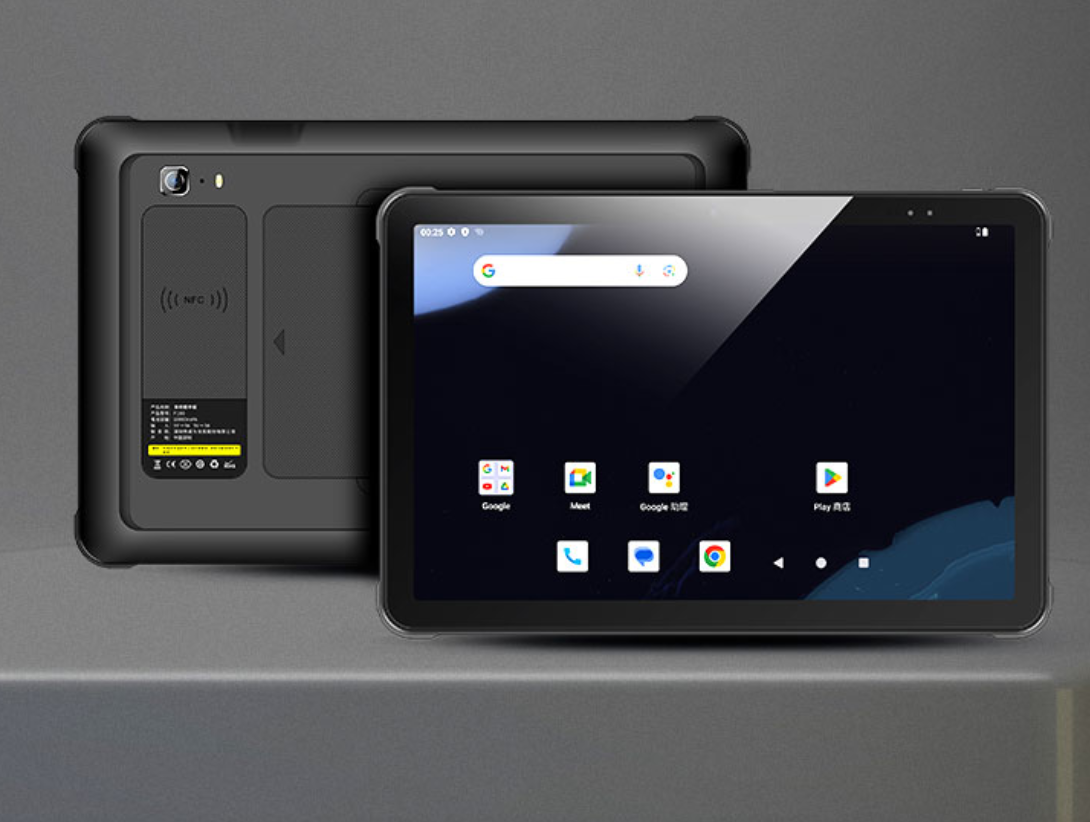

P100S Industrial Tablet








Compatible accessories








Standard accessories



Integration with your molding line
Large screen, high-definition, clear in bright light
The P100S features a 10.95-inch screen with a resolution of 1920x1200. It supports up to 800 nits brightness, ensuring clear visibility indoors and in bright outdoor light. The reliable touchscreen supports multi-touch and works with gloves and wet hands.
10,000mAh battery with power meter and fast charging
The P100 comes with a 10,000mAh removable battery that supports hot-swapping. It includes a power meter to monitor battery consumption and health. With advanced fast charging up to 27W (9V/3A) and full compatibility with PPS protocol, you can quickly recharge and ensure long-lasting performance.
Advanced wireless technology for efficient data transfer
The P100S excels in wireless connectivity, WiFi 6, and Bluetooth 5.2 to meet diverse needs. Its 2x2 MIMO WiFi antenna offers high-speed transmission, increased network capacity, extended coverage, and low power consumption, ensuring stable signals for multiple devices. This provides a highly efficient data transfer experience.
Comprehensive data collection capabilities
The P100S excels in data collection with a 13MP rear camera (with autofocus and flash) and a 5MP front camera for high-resolution imaging. It features an enterprise-grade scanner for quick, accurate barcode reading, including damaged and DPM codes. The built-in NFC function expands its application range. The P100S is designed to provide powertul and versatile data collection capabilities.
1.2m drop resistance, IP67 dust and water protection
The P100S boasts industrial-grade durability, MIL-STD-810H (SGS Test), withstanding multiple 1.2-meter drops onto concrete. It meets IP67 dust and water resistance standards, ensuring reliable pertormance in harsh environments. Its exceptional durability and protection make the P100S an ideal choice for tackling various challenges, providing a stable and trustworthy user experience.
Specifications & docs
Dimensions
263.5 x 175.0 x 13.5 mm / 10.37 x 6.89 x 0.53 in. (for standard version)
Weight
802 g / 28.29 oz. (for standard version)
Display
10.95", 1920x1200
Touch Panel
Corning Glass, multi-touch panel, gloves and wet hands supported
Power
10000mAh removable main battery with meter (Support fast charge)
Interfaces
USB 3.0 Type-C, OTG, Support USB Type-C Digital Earphone
Sensors
Gravity sensor, light sensor, proximity sensor, gyroscope(Optional), geomagnetic sensor (Optional)
Notification
Sound, LED indicator
Audio
2 microphone; 2 speakers
Keypad
1 scan key, 1 power key, 1 volume keys (+/-), 2 virtual keys
CPU
2.2 GHz Octa-core;
RAM+ROM
4GB+64GB/8GB+256GB (Optional)
Expansion
Supports up to 512 GB Micro SD card
WLAN
Support 802.11 a/b/g/n/ac, 2.4G/5G dual-band;
Supports fast roaming; Wi-Fi 6E (optional)
WWAN (Europe)
2G:GSM:B2/B3/B5/B8; CDMA 1XEVDO BCO, BC1
3G:WCDMA:B1/B2/B5/B8
4G:TDD LTE :B34/B38/B39/B40/B41(2496-2690)/B42/B43
FDD LTE :B1/B2/B3/B4/B5/B7/B8/B20/B28full/B66
5G:SA N1/N3/N5/N7/N8/N20/N28/N38/N41(PC2)/N66/N77/N78/N79
Vo-LTE
Support Vo-LTE HD video voice call Galileo
Bluetooth
Bluetooth V5.2, support Bluetooth headset
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo
Card slot
1 PSAM card slots
Protocol
ISO7816
Camera
Rear Camera
13 MP Autofocus with flash (Compatible with 16 MP)
Front Camera
5 MP
NFC
Frequency
13.56 MHz
Protocol
ISO14443A/B,ISO15693, NFC-IP1,NFC-IP2, etc.
Chips
M1 card (S50, S70), CPU card, NFC tags, etc.
Range
2-4 cm
Barcode Scanning
Scan Engine
Zebra SE4100, SE55; CM60
1D Symbologies
UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies
PDF417,MicroPDF417, Composite, RSS,TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes:US PostNet, US Planet, UK Postal, Australian Postal, JapanPostal, Dutch Postal (KIX),etc.
Operating System
Android 14
SDK
Chainway Software Development Kit
Tool
Java
Language
Eclipse/Android Studio
Operating Temp.
-20 °C to 50 °C
Storage Temp.
-40 °C to 70 °C
Humidity
5% RH-95% RH (non condensing)
Drop Specification
MIL-STD-810H (SGS Test): Multiple 1.2 m drops to concrete across the operating temperature range
Sealing
IP67 per lEC sealing specifications
ESD
‡15 KV air discharge, ‡8 KV conductive discharge
