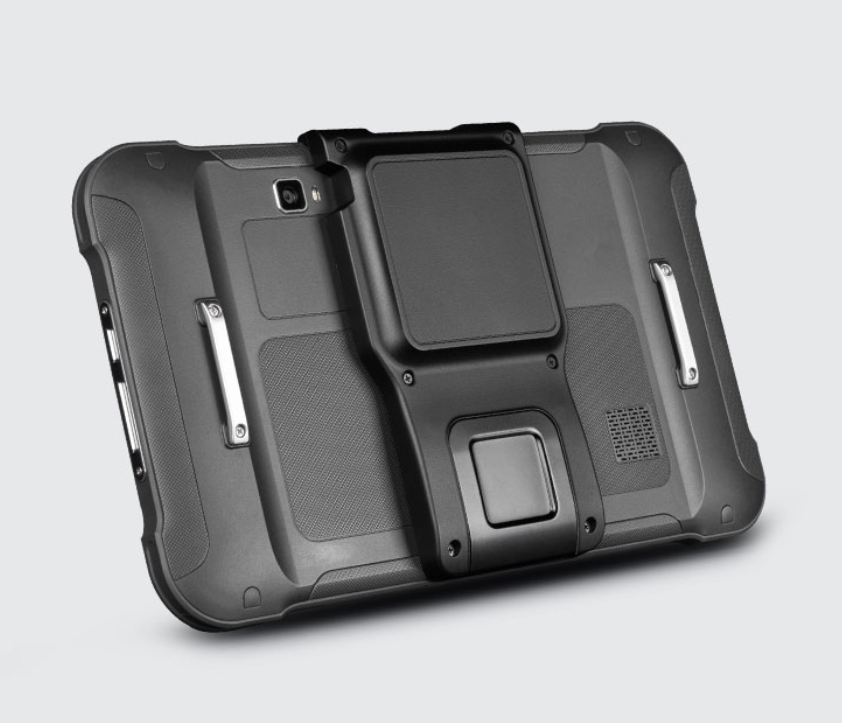

P80 UHF Industrial tablet

€ 899.90 EUR

excl. VAT

Chainway P80 RFID tablet, integrated with Chainway’s industry best self-developed UHF RFID module based on Impinj E Series chips and supports the Impinj Gen2X, is the ideal device to get superior reading/writing performance. The device ensures high reliability with an 8700 mAh battery for long-lasting backup and has an 8" large IPS display with Android 13.0 OS. This tablet with RFID function can perform multiple tasks in various sectors such as retail operation, inventory management, logistics, asset management, etc.

Android 13

Android 13

8" Screen

8" Screen

8700mAh Battery

8700mAh Battery

IP65 & 1.5m Drop

IP65 & 1.5m Drop

High Performance Octa-Core 2.0Ghz

High Performance Octa-Core 2.0Ghz

Impinj Gen2X

Impinj Gen2X

Optional Barcode, UHF, NFC, Fingerprint and More

Optional Barcode, UHF, NFC, Fingerprint and More

Compatible accessories

P80 Charging cradle

P80 Charging cradle

CRD-P80-RBC

€ 60.90 EUR

excl. VAT

P80 Screen protector

P80 Screen protector

SP-P80

€ 11.90 EUR

excl. VAT

Standard accessories

Adapter EU 5V 2A (included)

USB Cable (included)

Sim Tray Ejector

Integration with your molding line

P80 UHF Industrial tablet

comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.

Specifications & docs

Dimensions 250.8 x 152.0 x 15.0 mm ( for standard version )

‍Weight 680 g ( for standard version )

‍Display 8'' IPS LTPS 1920 x 1200

‍Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported

‍Power Main battery: Li-ion, rechargeable, 8700 mAhStandby: over 500 hoursContinuous use: over 10 hours (depending on user environment)Charging time: 5-7 hours (with standard AC adaptor and USB cable)

‍Notification Sound, LED indicator

‍Expansion Slot 1 slot for Micro SIM card, 1 slot for Micro SIM / TF card, Optional dual PSAM card slots

‍Interfaces USB 2.0 Type-C, OTG

‍Audio 1 microphone; 1 speaker

‍Keypad 1 front key, 1 volume key, 1 power key, direction key (Optional)

‍Sensors Gravity sensor; gyroscope; geomagnetic sensor; light / proximity sensor

CPU Octa-core 2.0 GHz; GMS&AER

‍RAM+ROM 4 GB + 64 GB

‍Expansion Supports up to 256 GB Micro SD card

WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4G/5G dual-band, IPV4, IPV6;

‍WWAN 2G: 850/900/1800/1900MHz, GPRS, EDGE

3G: CDMA EVDO: BC0 WCDMA: B1/B2/B5/B8

4G: TDD-LTE: B34/B38/B39/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28

‍Bluetooth Bluetooth 5.1

‍Vo-LTE Support Vo-LTE HD video voice call

‍GNSS GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

Scan engine Zebra SE4710

‍1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

‍2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch, Postal (KIX), etc.

‍Note* This function is optional

‍

UHF

Engine Based on Impinj E Series chips

‍Frequency 865-868 MHz

‍Impinj Gen2X Supported

‍Protocol EPC C1 GEN2 / ISO18000-6C

‍Antenna Circular polarization

‍Power 1W (30 dBm, +5 dBm to +30 dBm adjustable)2W Optional (33dBm, for Latin America, etc.) R/W

‍Fastest Read Rate (circular polarization) 900+ tags/sec

‍Max Read Range Up to 10 m (open outdoors, Impinj MR6 tag);

‍Note* Ranges and rates depend on tags and environment.* This function is optional

‍

NFC

Frequency 13.56 MHz

‍Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc

‍Chips M1 card (S50, S70), CPU card, NFC tags, etc.

‍Range 0-4 cm

Operating System Android 13; GMS&AER, 90-day security updates, FOTA, Soti MobiControl, SafeUEM supported

‍SDK Chainway Software Development Kit

‍Language Java

‍Tool Eclipse / Android Studio

Operating Temp. -20 °C to 50 °C

‍Storage Temp. -40 °C to 70 °C

‍Humidity 5% RH - 95% RH non condensing

‍Drop Specification Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range

‍Tumble Specification 500 x 0.5 m / 1.64 ft falls at room temperature

‍Sealing IP65 per IEC sealing specifications

‍ESD ±15 KV air discharge, ±8 KV conductive discharge
