R3S Desktop RFID Reader

€ 391.90 EUR

excl. VAT

The Chainway R3S Desktop RFID Reader features a compact all-in-one design with versatile connectivity for flexible deployment. Powered by the Impinj E Series chipset with Gen2X support, it delivers stable and accurate tag reading through optimized anti-collision algorithms and 30-step adjustable output power. Supporting Type-C, Ethernet, and Bluetooth 5.0, and compatible with Windows, Android, and iOS, the R3S is suitable for desktop use or kiosk integration in retail checkout and high-value asset management.

All-in-One design

All-in-One design

Integrated UHF Module and Antenna

Integrated UHF Module and Antenna

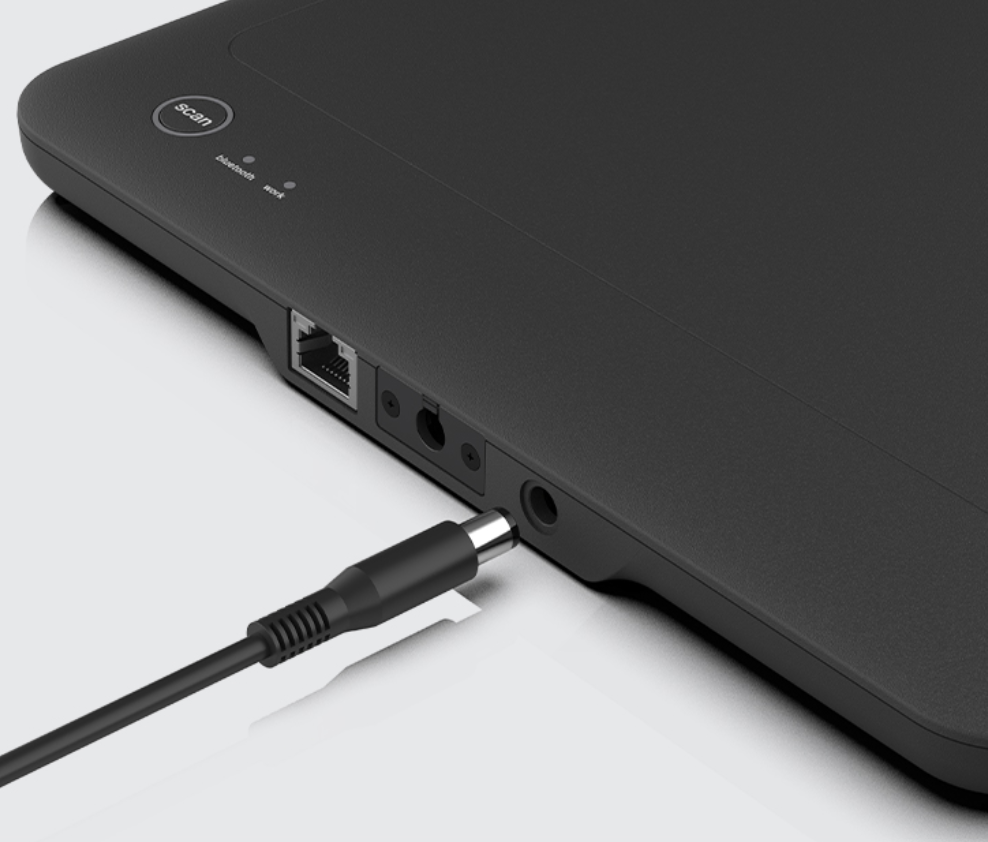

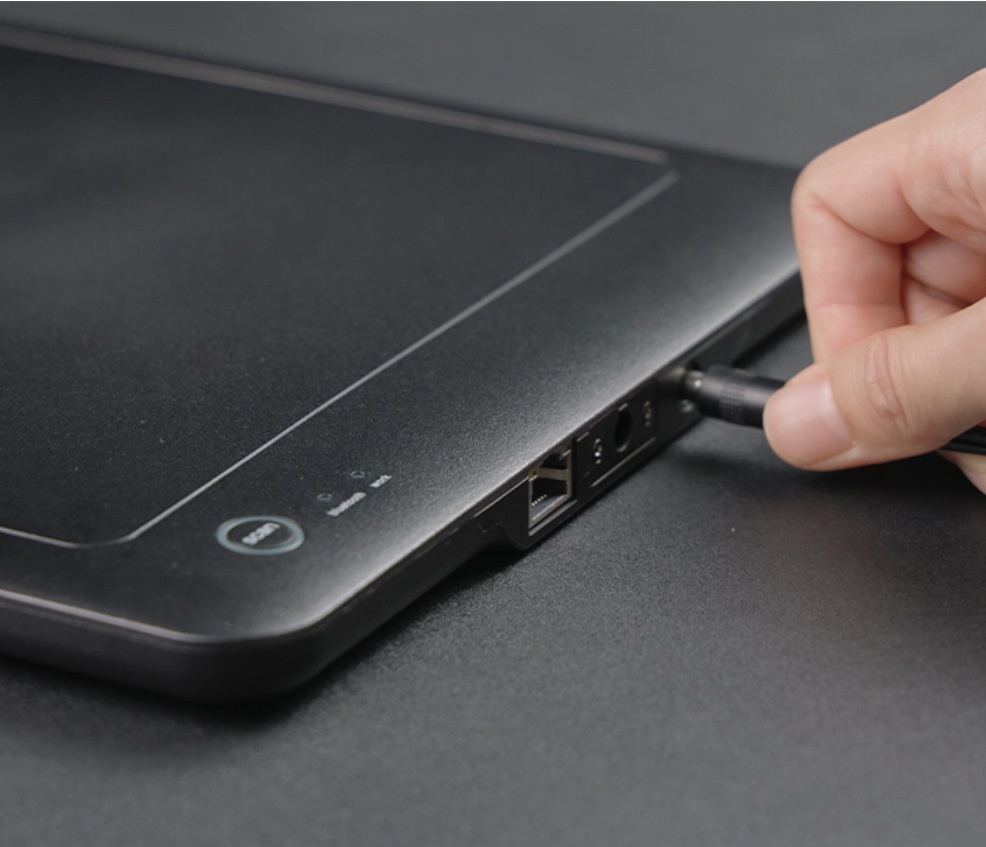

Type-C, RJ45 and DC input

Type-C, RJ45 and DC input

Physical Scan Button

Physical Scan Button

Compatible with Windows / Linux / Mac

Compatible with Windows / Linux / Mac

LED Indicator and Buzzer

LED Indicator and Buzzer

Impinj Gen2X

Impinj Gen2X

Reads 70+ Tags in One scan

Reads 70+ Tags in One scan

7-100cm Read Range

7-100cm Read Range

Optional Barcode, UHF, NFC, Fingerprint and More

Optional Barcode, UHF, NFC, Fingerprint and More

Compatible accessories

No compatible accessories for this product.

Standard accessories

No compatible accessories for this product.

Integration with your molding line

R3S Desktop RFID Reader

comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.

Specifications & docs

Dimensions 255mm × 235mm × 18mm

‍Weight Approximately 650g

‍Material PC

‍Buzzer 1 × Buzzer

‍Button 1 × Scan Button

‍Indicator LED 1 × Power indicator (ring around the inventory button)1 × Bluetooth indicator1 × Operation indicatorEthernet indicators: 1 × green LED + 1 × yellow LED (optional)

‍Port Compact Version: 1 × USB Type-C portEnhanced Version: 1 × USB Type-C port + 1 × DC power portPoE Version: 1 × USB Type-C port + 1 × DC power port + 1 × RJ45 port

‍Power Supply USB power supplyDC power supply (input voltage DC +8V to +28V)Power over Ethernet (PoE+, IEEE 802.3at, 25.5W)

Ethernet interface 10 / 100 Base-T Ethernet / PoE+ support

‍Bluetooth BLE 5.0

‍USB Type C USB 2.0 with a transmission rate of 12Mbit/s

UHF Engine Based on Impinj E Series chip

‍Frequency 865-868MHz

‍Impinj Gen2X Supported

‍Protocol EPC global Class 1 Gen 2 / ISO 18000-63 RFID

‍Antenna Near-Field Antenna

‍Output Power 1-30, step 1dB

‍Fastest Read Rate 250+ tags/sec

‍Multi-tag Inventory Supports reading 70+ RFID tags at once (5 seconds)

‍Max Read Range >100cm (tag: Impinj M750 tag)

SDK Supports Android, iOS, and Windows systems

Operating Temp. -20°C to 50°C

‍Storage Temp. -40°C to 70°C

‍Humidity 5%RH - 95%RH non condensing

‍Sealing Ingress Protection (IP) 54 rating

‍Vibration YD/T 1539-2019

‍ESD ±15kV air discharge, ±8kV contact discharge
