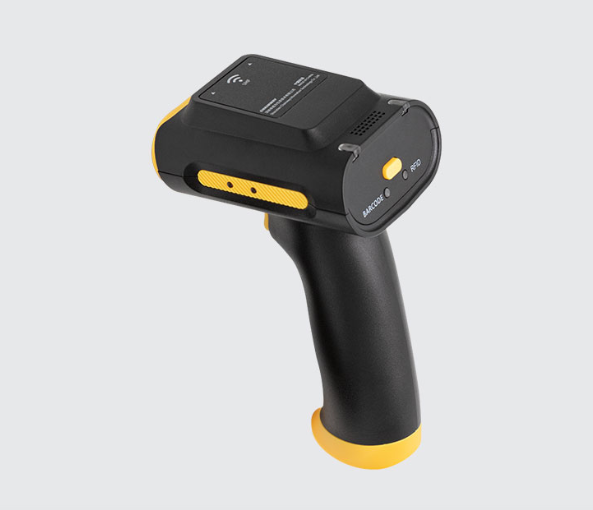

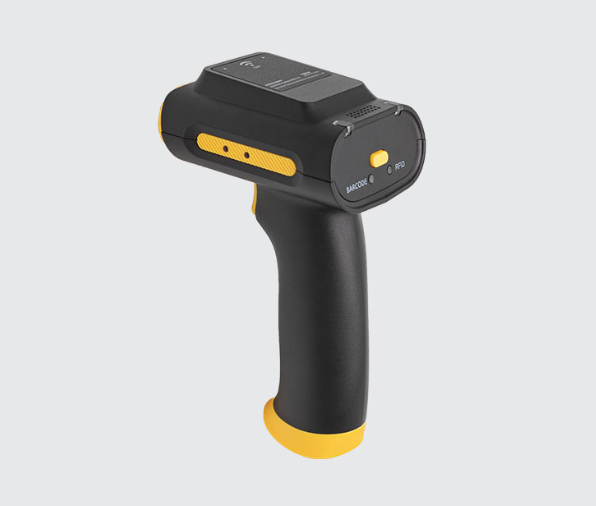

SR160 Bluetooth Handheld RFID & 2D scanner
€ 337.40 EUR
excl. VAT
Chainway SR160 is a powerful UHF Scanner that supports both UHF RFID and 1D/2D scanning. Adopting self-developed UHF RFID modules based on the Impinj E Series chips, supporting Impinj Gen2X for excellent single-tag read/write performance. SR160 can read various tags fastly and accurately with 7-100cm adjustable reading range. The scanner also supports a high-performance barcode scan engine to capture a wide range of 1D/2D barcodes. SR160 can be widely used in retail, inventory, warehouse, logistics, manufacturing, etc.
No items found.
No items found.
Compatible accessories
SR160 Charging cradle
CRD-SR160-SCC
Charging cradle. Type C port. Need to buy type C cable separately.
€ 36.40 EUR
excl. VAT
SR160 Desktop stand
SR160-DS
Desktop stand
€ 30.80 EUR
excl. VAT
SR160 Battery
BTY-SR160-PB
€ 15.40 EUR
excl. VAT
Standard accessories
USB Cable (included)
SR160 battery (included)
Integration with your molding line
SR160 Bluetooth Handheld RFID & 2D scanner
comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.
Specifications & docs
Dimensions
154.0 x 87.8 x 65.0mm / 6.46 x 3.43 x 2.56in.
Battery
2600mAh
Material
Plastic
Keypad
power key / scan key
Button
UHF、2D、UHF or 2D
Indicator LED
Function: 1 for UHF, 1 for 2DStatus: 1 for UHF, 1 for 2DPower: 1Bluetooth: 1
Ethernet Interface
BT HID
Bluetooth
Bluetooth Low Energy (BLE) 5.0
UHF RFID
Engine
Based on Impinj E Series chips
Frequency
920-925MHz / 902-928MHz / 865-868MHz
Impinj Gen2X
Supported
Protocol
EPCglobal C1G2 (ISO18000-6C)
Antenna
Circular Polarized Antenna
Output Power
1-25dBm
Output Power Precision
±1dBm
Output Power Flatness
±1dBm
Max Read Range
>30cm (Tag: Alien H3)
Barcode Scanning
Scan engine
2D Scanner
Min.Resolution
Code 39 – 4mil、UPC – 7.8mil (60%)、 PDF417 – 5mil、Datamatrix – 5mil
Operating Temp.
-4°F to 122°F / -20°C to +50°C
Storage Temp.
-40°F to 158°F / -40°C to +70°C
Humidity
5% RH - 95% RH non condensing
Drop Specification
1.5m
