URA4 Fixed RFID Reader

€ 741.90 EUR

excl. VAT

Chainway URA4 is a 4-channel fixed RFID reader, based on Android 13 Integrated with Impinj E Series chips. With the added support of Impinj Gen2X, it delivers superior UHF performance. The reader supports RS232, RJ45 and HDMI, and can be compatible with various types of antennas. With high stability and outstanding performance, URA4 can be ideally applied to warehouse management, archives and library management, bank, clothing and footwear retail, jewelry monitoring, watch industry, laundry, production line management, medical instrument cabinet and vending machines.

Android 13

Android 13

Durable Aluminium Alloy Body

Durable Aluminium Alloy Body

Flexible Deployment

Flexible Deployment

Impinj Gen2X

Impinj Gen2X

1300+ Tags/s Read Rate

1300+ Tags/s Read Rate

Compatible accessories

Antenna 5dBi Pole mount

Antenna 5dBi Pole mount

Ant-RC05-145/145-EU Wall mount

€ 68.90 EUR

excl. VAT

Antenna 5dBi Wall mount

Antenna 5dBi Wall mount

Ant-RC05-145/145-EU Wall mount

€ 68.90 EUR

excl. VAT

5dBi Antenna Cable LMR240-5M

5dBi Antenna Cable LMR240-5M

5 meter for URA4 with 5dBi Antenna. Loss of signal 0,25DBi/m

€ 33.90 EUR

excl. VAT

5dBi Antenna Cable LMR240-15M

5dBi Antenna Cable LMR240-15M

15 meter for URA4 with 5dBi Antenna. Loss of signal 0,25DBi/m

€ 62.90 EUR

excl. VAT

Antenna 9dBi Wall mount

Antenna 9dBi Wall mount

Ant-RC09-255/255-EU Wall mount

€ 87.90 EUR

excl. VAT

Antenna 9dBi Pole mount

Antenna 9dBi Pole mount

Ant-RC09-255/255-EU Pole mount

€ 87.90 EUR

excl. VAT

Antenna 12dBi Pole mount

Antenna 12dBi Pole mount

Ant-RC12-455/455-EU Pole mount

€ 147.90 EUR

excl. VAT

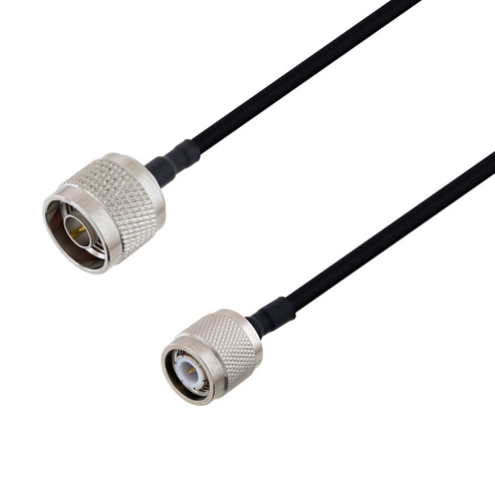

9/12dBi Antenna Cable LMR240-5M

9/12dBi Antenna Cable LMR240-5M

5 meter for URA4 with 9/12dBi Antenna. Loss of signal 0,25DBi/m

€ 33.90 EUR

excl. VAT

9/12dBi Antenna Cable LMR240-15M

9/12dBi Antenna Cable LMR240-15M

15 meter for URA4 with 9/12dBi Antenna. Loss of signal 0,25DBi/m

€ 62.90 EUR

excl. VAT

Standard accessories

No compatible accessories for this product.

Integration with your molding line

URA4 Fixed RFID Reader

comes with a full set of specs, options, and accessories—review the details below to see how it fits your setup.

Specifications & docs

Dimensions 214 (L) x 148 (W) x 30 (H) mm

‍Weight 1000g (without antenna)

‍Power DC (12V), POE (802.3af 13W), POE+ (802.3at 25.5W)

‍Material Aluminium alloy

‍Expansion Slot 1 slot for Nano SIM card, 1 slot for TF card

‍Input Voltage DC 10V – 24V

‍Standby Current < 30mA

‍Comm Interface 1*RS-232 , 1*RJ45, 3*USB2.0 Type A, 1*Type C, USB Host

‍GPIO 4 Input Optical-couplings, 4 Output Optical-couplings, isolation

‍Baud Rate 115200 bps

‍Cooling Mode Air cooling

‍Work Current 1300mA +/-5% @ DC 12V Input

‍Display Interface HDMI Type A, support 720P

CPU Octa-core 2.0 GHz

‍RAM+ROM 3GB + 32GB

Ethernet interface 10/100 Base-T Ethernet (RJ45)

‍WLAN Support 802.11 a/b/g/n/ac/d/e/h/i/k/r/v,2.4G/5G dualband, IPV4,IPV6;

Fast roaming: PMKID caching, 802.11r, OKC;

Operating Channels: 2.4G(channel 1~13), 5G(channel 36,40,44,48,52,56,60,64,100,104,108,112,1 16,120,124,128,132,136,140,149,153,157,161,165), Depends on local regulations;

Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI-PSK—EAP-TTLS,EAP-TLS, PEAPMSCHAPv2, PEAP-LTS,PEAP-GTC,etc.

‍WWAN (Europe, Asia) 2G: GSM/EDGE (MHz): 850/900/1800/1900

3G: WCDMA: B1/B2/B4/B5/B8

4G: TDD-LTE: B38/B40/B41 FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B28

‍WWAN (America) 4G: TDD-LTE: B41 FDD-LTE: B2/B4/B5/B7/B12/B13/B14/B17/B25/ B26/B66/B71

‍Bluetooth 5.1

UHF RFID

Engine Based on Impinj E Series chips

‍Frequency 865-868 MHz

‍Impinj Gen2X Supported

‍Protocol EPC global UHF Class 1 Gen 2 / ISO 18000-6C

‍Antenna Supporting a variety of antennas, such as 6dBic, 9dBic

‍Output Power1W (30dBm, support +5~+30dBm adjustable, POE/DC power)2W Optional (33dBm, support +10~+33dBm adjustable, POE+/DC power, for Latin America, etc.)

‍Output Power Precision +/- 1dB

‍Output Power Flatness +/- 0.2dB

‍Receive Sensitivity < -84dBm

‍RSSI Supported

‍Ambient Temp Monitor Supported

‍Fastest Read Rate 1300+ tags/sec

‍Antenna Detector Supported

‍Antenna Port 4 channel 50Ω TNC port

Operating System Android 13

‍SDK Chainway Software Development Kit

‍Language Java

‍Tool Eclipse/Android Studio

Operating Temp. -25 °C to 55 °C

‍Storage Temp. -40 °C to 85 °C

‍Humidity5% - 95%

URA4 (A13) Data Sheet

URA4 (A13) User Manual

‍
